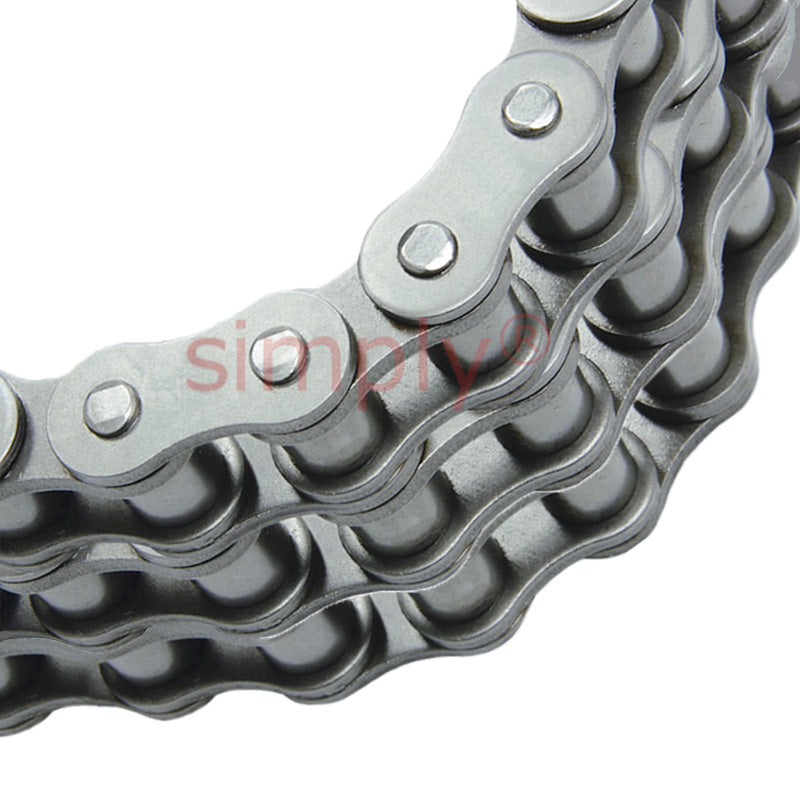

• Branded 24B-3 BS Triplex Roller Chain 1-1/2 inch Pitch 2.5 Metres
1 1

SKU: 24B-3-2.5MTR-MB

Branded 24B-3 BS Triplex Roller Chain 1-1/2 inch Pitch 2.5 Metres

Branded 24B-3 BS Triplex Roller Chain 1-1/2 inch Pitch 2.5 Metres
$480.54 ex VAT
$480.54 ex VAT
Sale Sold out

In stock

Price Break
2+ $321.88
5+ $303.79
10+ $300.18
29+ $296.56
49+ $292.94
75+ $289.33
100+ $271.24
200+ $267.63
250+ $264.01
500+ $260.40
1000+ $253.16

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
38.1mm = 1.5 (1-1/2) inch
Technical
Pitch (P) 38.1mm = 1.5 (1-1/2) inch
Roller Diameter (D1 max) 25.4mm
Width between inner plates (B1 min) 25.4mm
Pin dia meter (D2 max) 14.63mm
Pin length (L max) 150.1mm
Pin length (Lc max) 154.6mm
Inner plate depth (H2 max) 33.2mm
Plate thickness (T max) 6.0/4.8mm
Ultimate tensile strength (Q min) kN/LB 425.0/96591
Average tensile strength (Q0) kN 493
Transverse pitch (Pt) mm 48.36
Weight per meter (q) kg/m 20.1
