SKU: 24B-3-SYN-NO11-RENOLD
Renold Synergy 24B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Renold Synergy 24B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Regular price
$363.77
ex VAT
Regular price
Sale price
$363.77
ex VAT
In stock
Price Break
2+
$243.67
5+
$229.98
10+
$227.24
29+
$224.50
49+
$221.76
75+
$219.03
100+
$205.34
200+
$202.60
250+
$199.86
500+
$197.12
1000+
$191.65
Quantity
Couldn't load pickup availability
Share this product
Description
Description

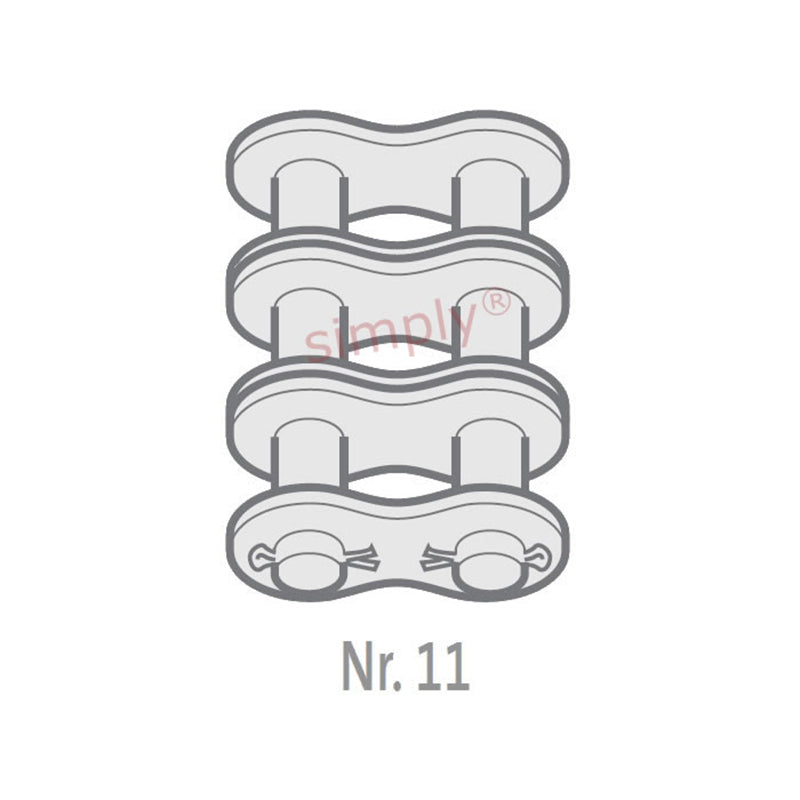

| Renold No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.4mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 33.4mm |
| Plate Width Inner max (E) | 6.1mm |
| Plate Width Outer max (F) | 5.08mm |
| Pin Diameter max (G) | 14.63mm |
| Pin Length max (H2) | 149.7mm |
| Connecting Link Extension max (J) | 6.8mm |
| Transverse Pitch nom (K) | 48.36mm |
| ISO606 Tensile Strength min | 425000 N |
| Weight | 0.19kg/m |
