SKU: 25-1-NO30-MB
Branded 25-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1/4 inch Pitch
- Regular price
- $6.91 ex VAT
- Sale price
- $6.91
- Regular price
-
In stock
Quantity Price Breaks
2
$6.15
5
$5.80
10
$5.74
29
$5.67
49
$5.60
75
$5.53
100
$5.18
200
$5.11
250
$5.04
500
$4.98
1000
$4.84
SKU:
25-1-NO30-MB
Branded 25-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1/4 inch Pitch
- Regular price
- $6.91 ex VAT
- Sale price
- $6.91
- Regular price
-
Description

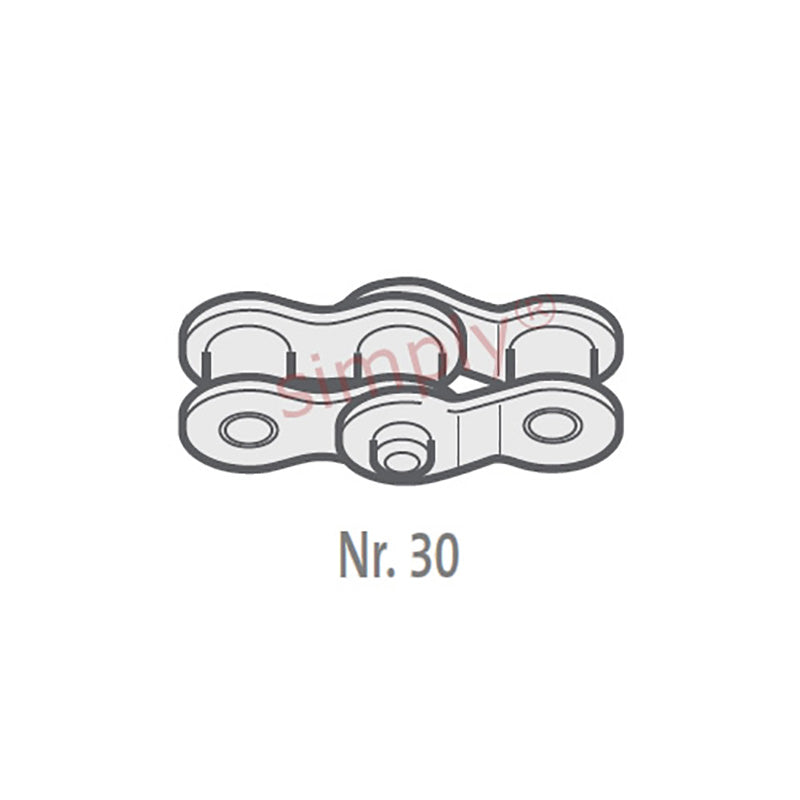

Branded DOL / No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Technical
| Pitch (A) | = | 0.25 inch |
| Pitch (A) | = | 6.35mm |
| Inside Width min (B) | = | 3.18mm |
| Roller Diameter max (C) | = | 3.3mm |
| Plate Height max (D) | = | 5.9mm |
| Plate Width Inner max (E) | = | 0.75mm |
| Plate Width Outer max (F) | = | 0.75mm |
| Pin Diameter max (G) | = | 2.31mm |
| Pin Length max (H1) | = | 7.8mm |
| Connecting Link Extension max (J) | = | 0.649999999999999mm |
| ISO606 Tensile Strength min | = | 3500 N |
| Weight | = | 0.15kg/m |
