SKU: 25-1-SD-NO30-RENOLD
Renold SD 25-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1/4 inch Pitch
Renold SD 25-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 1/4 inch Pitch
Out of stock
Description
Description

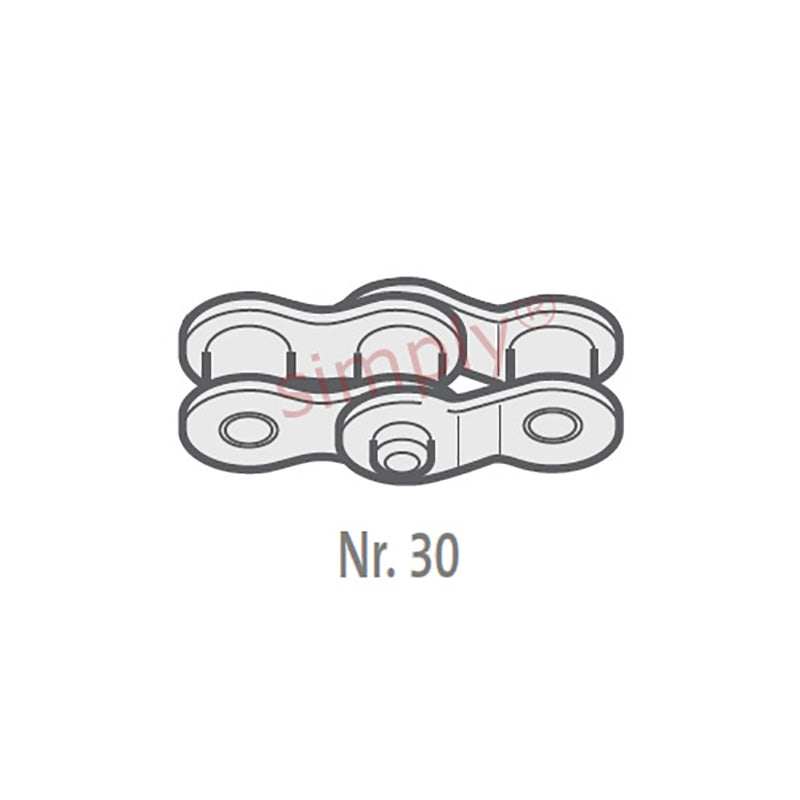

| Renold No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 6.35mm = 0.25 (1/4) inch
Technical
Technical
| Pitch (A) | 0.25 inch |
|---|---|
| Pitch (A) | 6.35mm |
| Inside Width min (B) | 3.18mm |
| Roller Diameter max (C) | 3.3mm |
| Plate Height max (D) | 5.9mm |
| Plate Width Inner max (E) | 0.75mm |
| Plate Width Outer max (F) | 0.75mm |
| Pin Diameter max (G) | 2.31mm |
| Pin Length max (H1) | 7.8mm |
| Connecting Link Extension max (J) | 0.649999999999999mm |
| ISO606 Tensile Strength min | 3500 N |
| Weight | 0.15kg/m |
