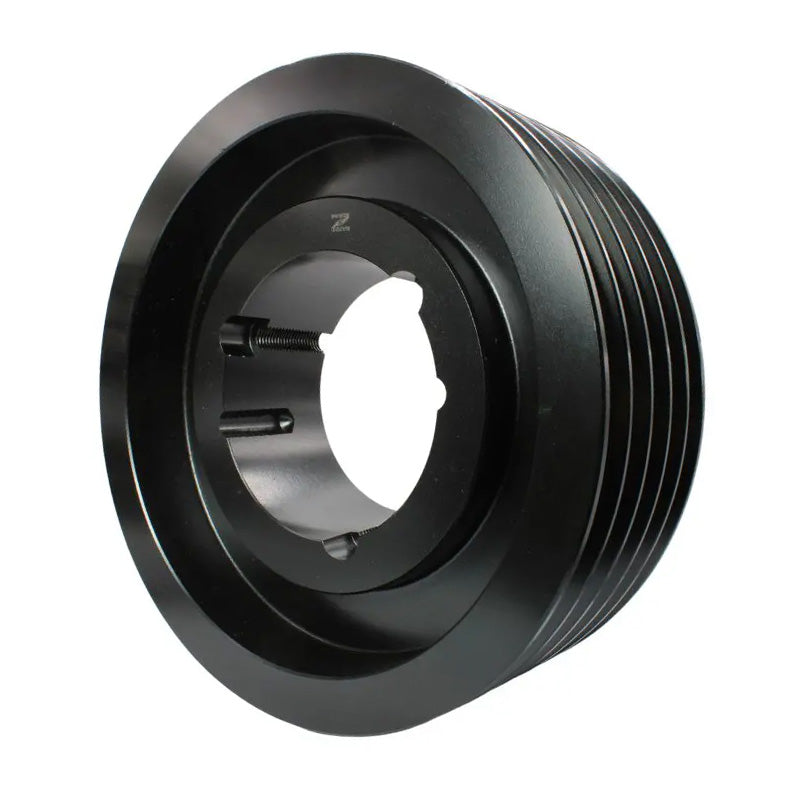

• 250X5SPA 250mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
  • 250X5SPA 250mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
1 2

SKU: 250SPA5-MB

250X5SPA 250mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

250X5SPA 250mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$111.89 ex VAT
$111.89 ex VAT
Sale Sold out

In stock

Price Break
3+ $74.95
5+ $70.74
9+ $69.90
19+ $69.05
49+ $68.21
74+ $67.37
99+ $63.16
199+ $62.32
249+ $61.47
499+ $60.63
999+ $58.95

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
256.2mm
Pitch Diameter:
250mm
Max Bore:
75mm

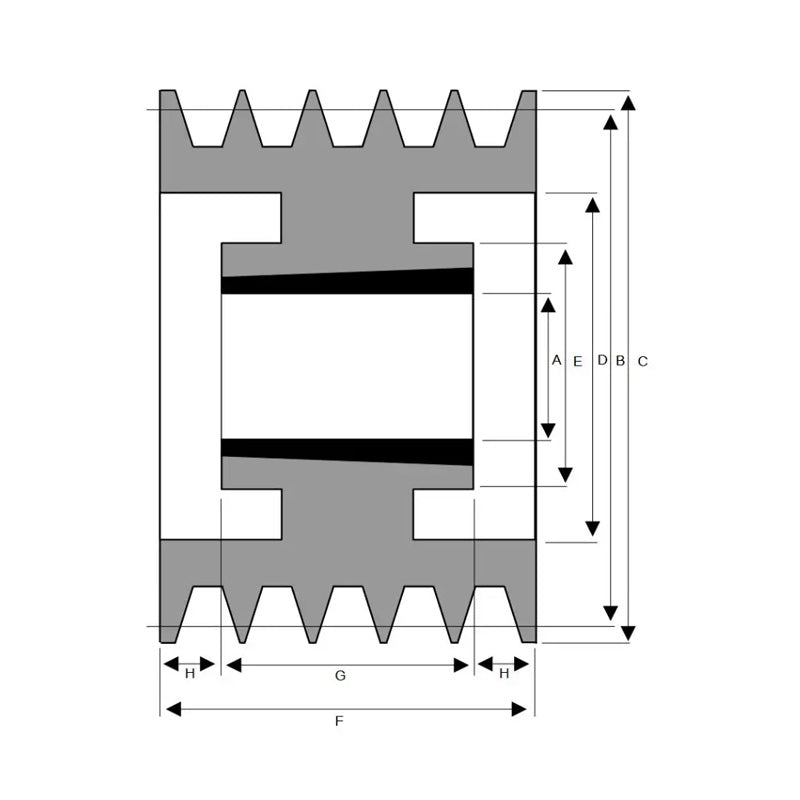

Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush">3020 Click Here</a>
Pitch Diameter B 250mm
Overall Outer Diameter C 256.2mm
Max Bore A 75mm
Outer Hub Diameter E 159mm
Overall Sheave Depth F 80mm
Bush Seat Length G 51mm
Inner Recess Diameter D 215mm
Inner Recess Length H 14.5mm
