• 250X6SPA 250mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
  • 250X6SPA 250mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
1 2

SKU: 250SPA6-MB

250X6SPA 250mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)

250X6SPA 250mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
$137.32 ex VAT
$137.32 ex VAT
Sale Sold out

In stock

Price Break
3+ $91.98
5+ $86.82
9+ $85.78
19+ $84.75
49+ $83.71
74+ $82.68
99+ $77.51
199+ $76.48
249+ $75.45
499+ $74.41
999+ $72.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
6
Outside Diameter:
256.2mm
Pitch Diameter:
250mm
Max Bore:
75mm

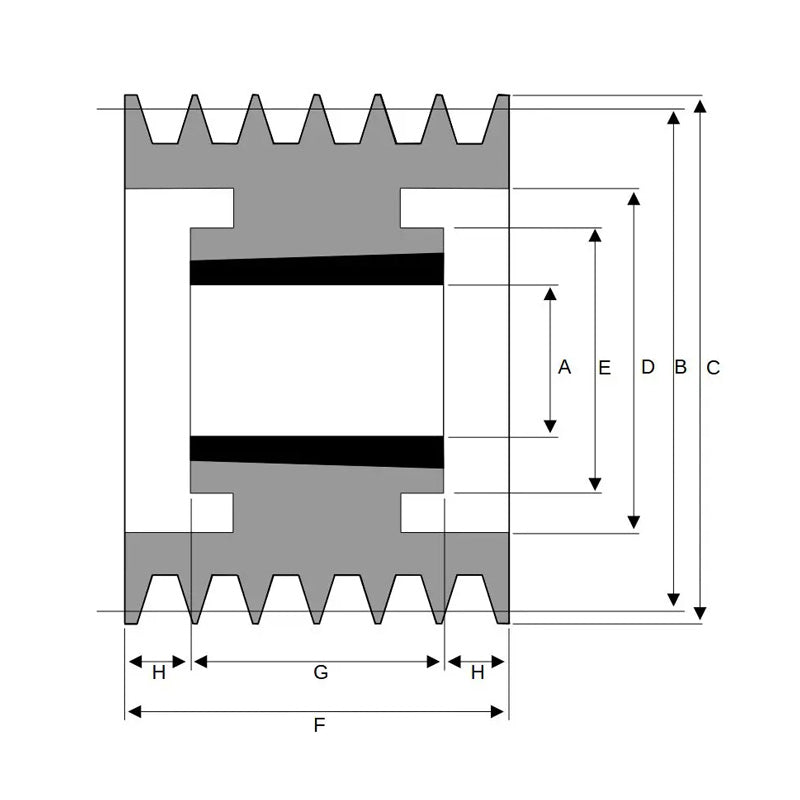

Technical
Number of Grooves 6
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush">3020 Click Here</a>
Pitch Diameter B 250mm
Overall Outer Diameter C 256.2mm
Max Bore A 75mm
Outer Hub Diameter E 155mm
Overall Sheave Depth F 95mm
Bush Seat Length G 51mm
Inner Recess Diameter D 215mm
Inner Recess Length H 22mm
