SKU: 250SPB5-MB

250X5SPB 250mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

250X5SPB 250mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$135.45 ex VAT
$135.45 ex VAT
Sale Sold out

In stock

Price Break
3+ $90.72
5+ $85.63
9+ $84.61
19+ $83.59
49+ $82.57
74+ $81.55
99+ $76.45
199+ $75.43
249+ $74.41
499+ $73.40
999+ $71.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
257.6mm
Pitch Diameter:
250mm
Max Bore:
100mm

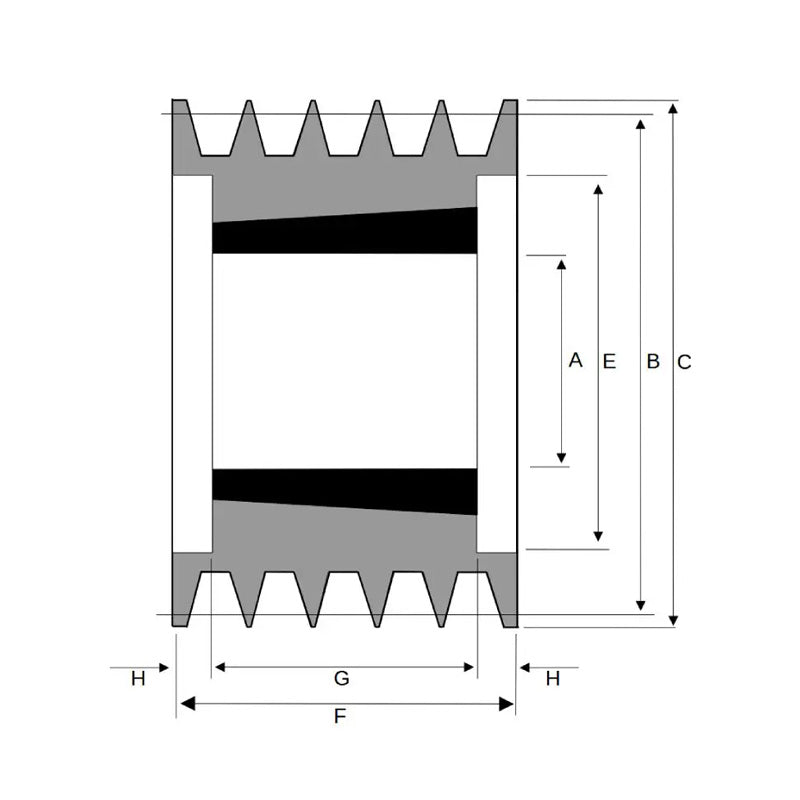

Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3525+tapered+locking+bush">3525 Click Here</a>
Pitch Diameter B 250mm
Overall Outer Diameter C 257.6mm
Max Bore A 100mm
Overall Sheave Depth F 101mm
Bush Seat Length G 65mm
Inner Recess Diameter D 207mm
Inner Recess Length H 6mm
