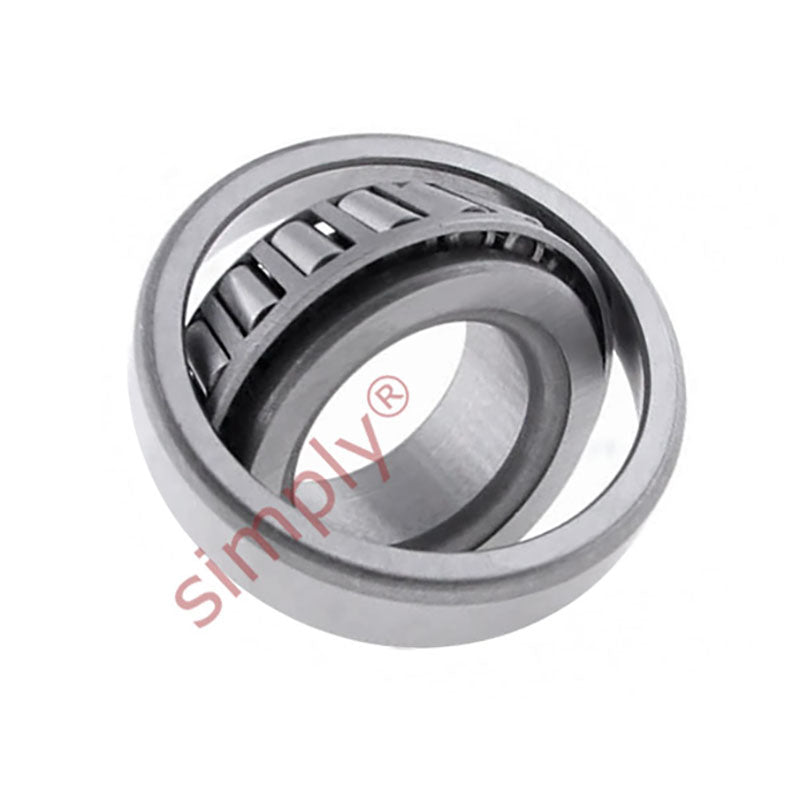

• SKF 25877/2/25821/2/Q Imperial Taper Roller Bearing 1.375x2.875x0.9375 inches - Allow 2-3 Days
1 1

SKU: 25877/2/25821/2/Q-SKF

SKF 25877/2/25821/2/Q Imperial Taper Roller Bearing 1.375x2.875x0.9375 inches - Allow 2-3 Days

SKF 25877/2/25821/2/Q Imperial Taper Roller Bearing 1.375x2.875x0.9375 inches - Allow 2-3 Days
$176.58 ex VAT
$176.58 ex VAT
Sale Sold out

In stock

Price Break
10+ $131.57
19+ $126.26
29+ $123.60
39+ $119.61
49+ $116.95
74+ $110.31
99+ $93.03
199+ $0.00
249+ $0.00
499+ $0.00
999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
SKF - High Quality
Inside Diameter:
34.93mm = 1.375 (1-3/8) inch
Outside Diameter:
73.03mm = 2.875 (2-7/8) inch
Width:
23.81mm = 0.937 (15/16) inch
Seals / Shields:
None
Technical
d 34.925mm
D 73.025mm
T 23.812mm
Dynamic load 72.1 kN
Static load 88 kN
Fatigue load limit Pu 9.8 kN
Reference speed 7000 rpm
Limiting speed 10000 rpm
Weight 0.47 kg
d1 52.5mm
B 24.608mm
C 19.05mm
r1r2 min 1.5mm
r3r4 min 0.8mm
a 15mm
da max 44mm
db min 42mm
Da min 62mm
Da max 66.5mm
Db min 67mm
Ca min 5mm
Cb min 4.5mm
ra max 1.5mm
rb max 0.8mm
Calculation factor e 0.3
Calculation factor Y 2
Calculation factor Y0 1.1
