25AT5/390/G3 ContiTech Gen III Synchroflex Timing Belt 25mm Width 5mm Pitch 78 Teeth

SKU: 25AT5/390/G3

25AT5/390/G3 ContiTech Gen III Synchroflex Timing Belt 25mm Width 5mm Pitch 78 Teeth

$61.17 ex VAT
$61.17
ex VAT
Not in stock

Quantity Price Breaks

3 $54.44
5 $51.38
10 $50.77
15 $50.16
20 $49.55
30 $48.94
40 $45.88
50 $45.27
60 $44.65
75 $44.04
100 $42.82
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
25AT5/390/G3 ContiTech Gen III Synchroflex Timing Belt 25mm Width 5mm Pitch 78 Teeth
SKU: 25AT5/390/G3

25AT5/390/G3 ContiTech Gen III Synchroflex Timing Belt 25mm Width 5mm Pitch 78 Teeth

$61.17 ex VAT
$61.17
ex VAT

Description

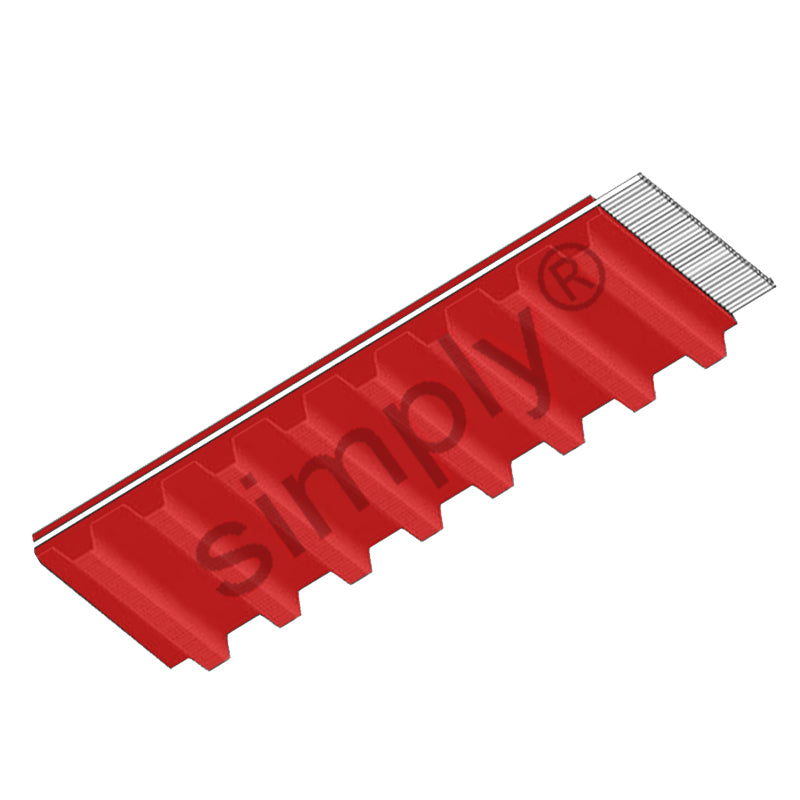

AT Generation 3 SYNCHROFLEX® Timing Belts: This belt is manufactured by ContiTech, specialists in rubber and plastics technology. This Synchroflex belt is a truly endless belt, suitable for AT pulleys.

The Generation 3 (Gen III) Synchroflex belt construction consists of high-tensile steel cord tension members and wear-resistant polyurethane which makes this belt extremely durable and provides high performance. Also, this belt provides an impressive 25% increase in power transmission when compared to the AT/ATP standard.

Benefits: Low elastic elongation, high flank load capacity, 25% more power than standard AT and high-performance polyurethane & steel reinforced.

Technical

No of Teeth = 78
Belt Width = 25mm
Belt Pitch = 5mm (AT5)
Belt Length = 390mm
Belt Thickness (hs) = 1.5mm
Tooth Height (ht) = 1.2mm
Tooth Pitch (t) = 5mm
Flank Angle (f) = 50 deg
Tension Member Loadings = 2175 N
Belt Weight (per metre) = 0.09kg
