SKU: 25x35x7.2_UIP_NAK

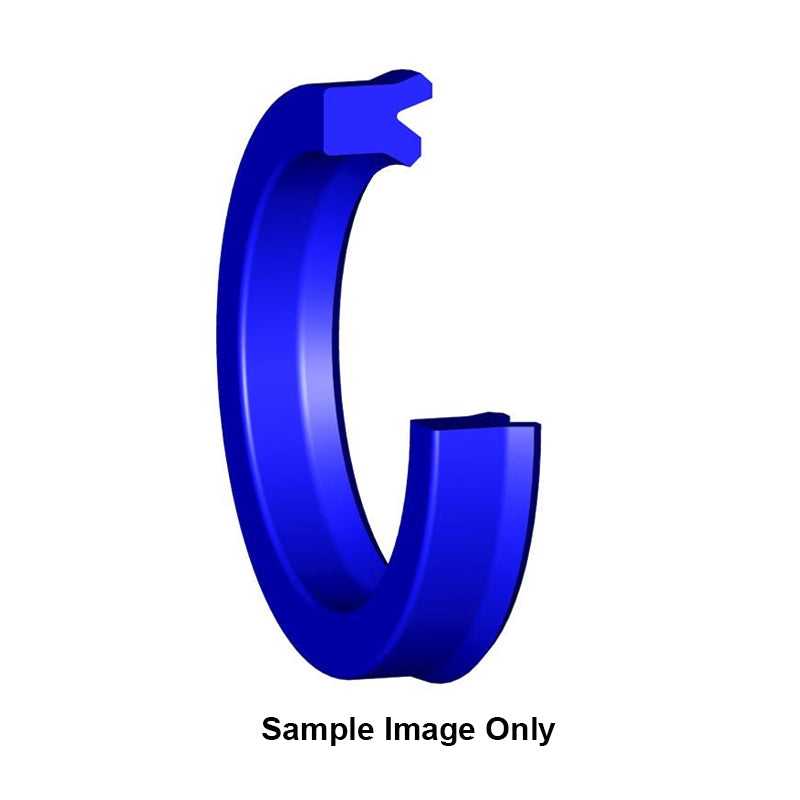

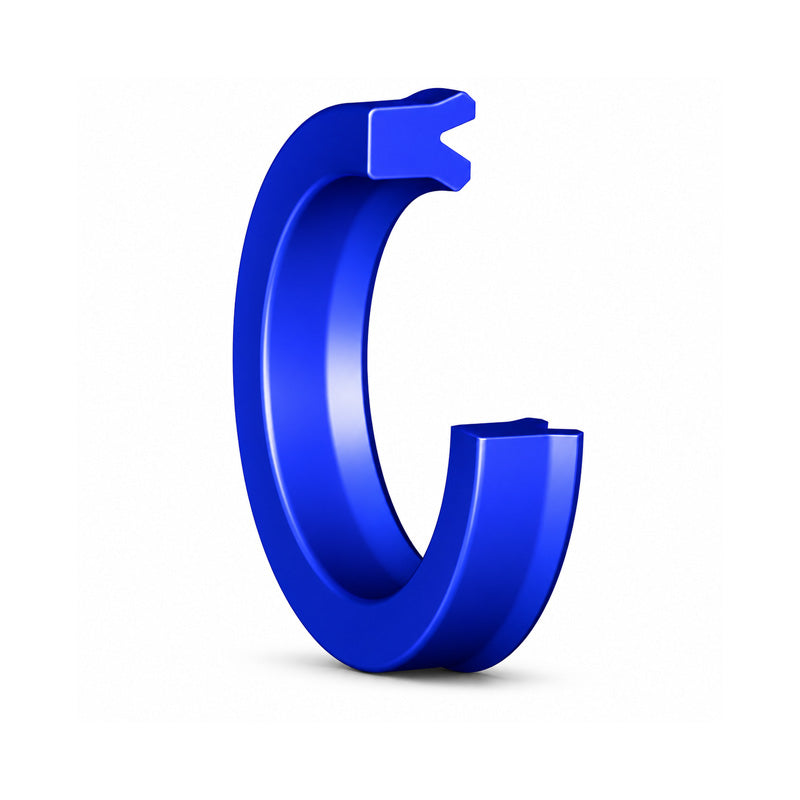

NAK 25x35x7.2mm UIP Polyurethane Rod Seal - Allow 7-10 Days
NAK 25x35x7.2mm UIP Polyurethane Rod Seal - Allow 7-10 Days
Regular price
$4.46
ex VAT
Regular price
Sale price
$4.46
ex VAT
In stock
Price Break
10+
$2.99
19+
$2.82
29+
$2.79
39+
$2.75
49+
$2.72
74+
$2.69
99+
$2.52
199+
$2.48
249+
$2.45
499+
$2.42
999+
$2.35
Quantity
Couldn't load pickup availability
Description
Description
NAK UIP Rod Seals: The UIP rod seal is a high-performance hydraulic sealing element developed by NAK for demanding rod-end applications. Featuring an asymmetric lip design, it delivers reliable sealing performance while offering enhanced protection against contamination and premature wear.
Benefits: Easy installation, extended operating life, low-friction operation even under high-speed conditions
- Brand / Quality:
- NAK - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 35mm
- Length:
- 7.2mm
- Material:
- Polyurethane
- Style:
- UIP
- Colour:
- Blue
Technical
Technical
| d | 25mm |
|---|---|
| D | 35mm |
| L | 8.2mm |
| h | 7.2mm |
| C | 2.5mm |
| Inside Diameter Tolerance | f8 |
| Outside Diameter Tolerance | H10 |
| Length Tolerance | 0.2mm |
| Pressure (max) | 40 Mpa |
| Sliding Speed (max) | 0.5 m/s |
| Temperature | -40 Deg C to +100 Deg C |
| Colour | Blue |
