SKU: 25x58x10_TFSS_VI_NAK

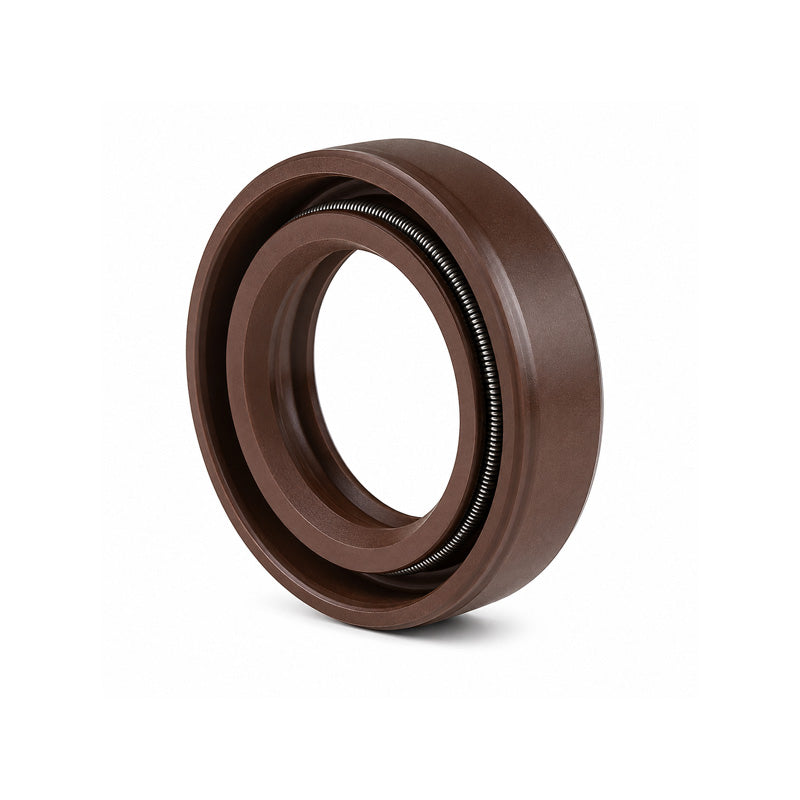

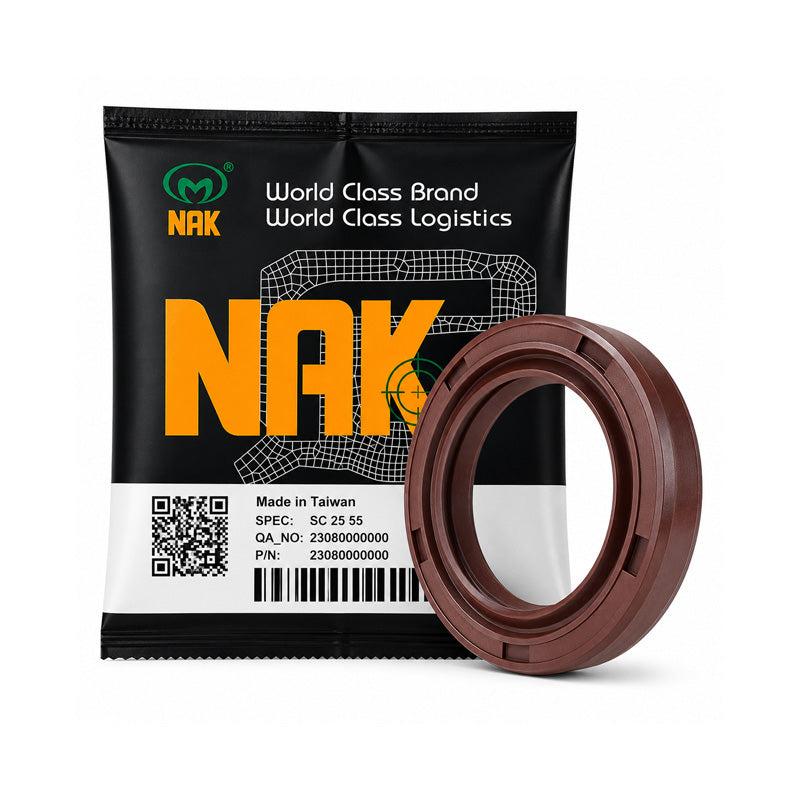

NAK 25x58x10mm FKM Rubber Additional Lining Double Lip Rotary Shaft Oil Seal with Stainless Spring TF
- Regular price
- $17.63 ex VAT
- Sale price
- $17.63
- Regular price
-
Quantity Price Breaks
NAK 25x58x10mm FKM Rubber Additional Lining Double Lip Rotary Shaft Oil Seal with Stainless Spring TF
- Regular price
- $17.63 ex VAT
- Sale price
- $17.63
- Regular price
-
Description
NAK TF FKM Oil Seals: Oil seals are used in a variety of different applications in which a rotating shaft is lubricated by oil or grease. They are engineered to facilitate the smooth operation of your equipment, serving as a barrier to prevent the leakage of oils and greases while also keeping foreign substances from entering. TF type seals have a special design featuring an additional inner rubber lining for better protection of the inner case. They have a rubber-covered outside diameter and features a sealing FKM rubber lip on the inside diameter as well as an external dust lip. The TF types feature a garter spring which allows some give to prevent a build-up of friction. (Seals under 5mm width may not always feature a spring.)
Benefits: High-temperature range, Chemical resistance, Higher wear resistance, Lower drag coefficient.
Technical
| --- | = | Dimensions |
| Shaft Size (not inside diameter) d | = | 25mm |
| Outside Diameter (D) | = | 58mm |
| Width (b) | = | 10mm |
| --- | = | Material |
| Material | = | FKM Rubber |
| Spring Material | = | Stainless Steel |
| = | Colour | |
| Brown | = | --- |
| Weights | = | Weight |
| 0.01 kg | = | N/A |
