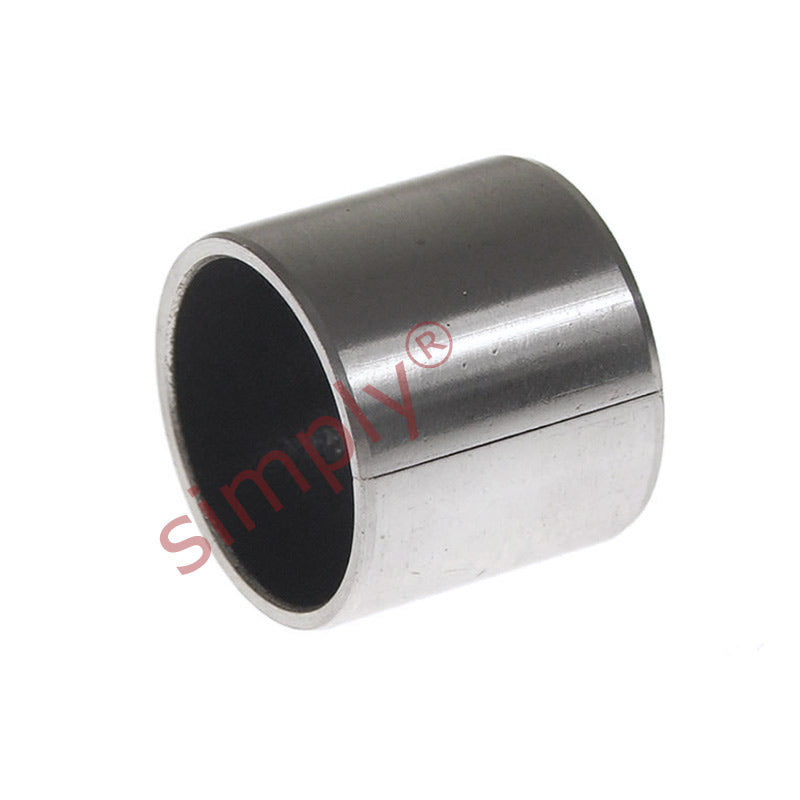

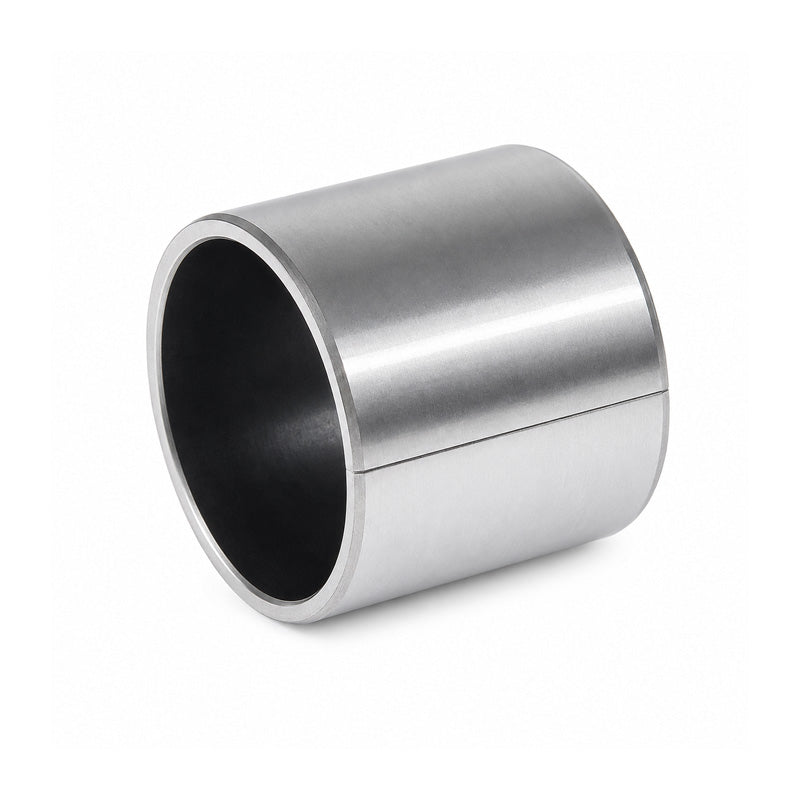

• 28D32 Wrapped Steel Bush 1-3/4x1-15/16x2 inch
1 1

SKU: 28.DLU.32

28D32 Wrapped Steel Bush 1-3/4x1-15/16x2 inch

28D32 Wrapped Steel Bush 1-3/4x1-15/16x2 inch
$8.33 ex VAT
$8.33 ex VAT
Sale Sold out

Equivalent to: PAPZ2832P10

In stock

Price Break
9+ $5.58
19+ $5.26
29+ $5.20
39+ $5.14
49+ $5.07
69+ $5.01
99+ $4.70
199+ $4.64
249+ $4.57
499+ $4.51
999+ $4.39

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Wrapped Steel Bushes - High Quality
Inside Diameter:
44.45mm = 1.75 (1-3/4) inch
Outside Diameter:
49.21mm = 1.937 (1-15/16) inch
Length:
50.8mm = 2 inch
Technical
d 1-3/4 inch
D 1-15/16 inch
b 2 inch
Structure Steel support strip S.A.E 1010. Sintered bronze layer. PTFE and lead combination
Maximum static load 250 N/mm<sup>2</sup>
Maximum dynamic load 140 N/mm<sup>2</sup>
Maximum sliding speed 2.5m/s dry 5.0m/s with oil
Operating temperature -200&deg; C to +280&deg; C
Thermal conductivity 46 W/mk
Coefficient of friction (dry) 0.02 to 0.20
Coefficient of friction (oil lubricated) 0.02 to 0.15
Recommended housing tolerance 4.5mm/5.5mm H6<br>7.0mm/305mm H7
Recommended shaft tolerance 3.0mm/4.0mm h6<br>5.0mm/75mm f7<br>80mm/300mm h8
Recommended shaft finish Ra &le; 0.4um (N5)
Recommended shaft hardness HB &gt; 200
