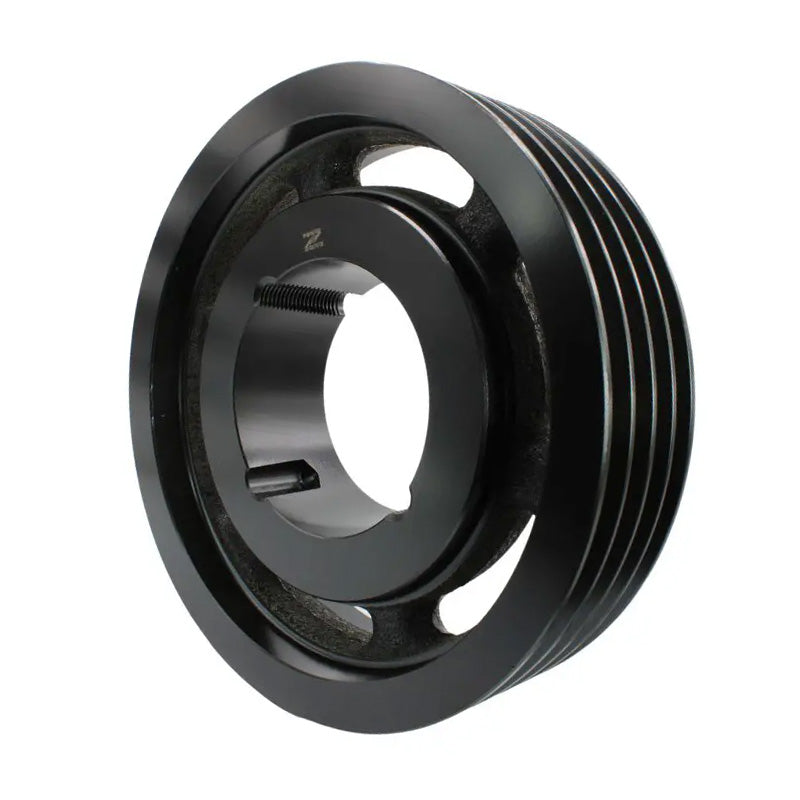

• 280X4SPB 280mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
  • 280X4SPB 280mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
1 2

SKU: 280SPB4-MB

280X4SPB 280mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

280X4SPB 280mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
$121.30 ex VAT
$121.30 ex VAT
Sale Sold out

In stock

Price Break
3+ $81.25
5+ $76.69
9+ $75.77
19+ $74.86
49+ $73.95
74+ $73.03
99+ $68.47
199+ $67.56
249+ $66.64
499+ $65.73
999+ $63.90

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
4
Outside Diameter:
287.6mm
Pitch Diameter:
280mm
Max Bore:
75mm

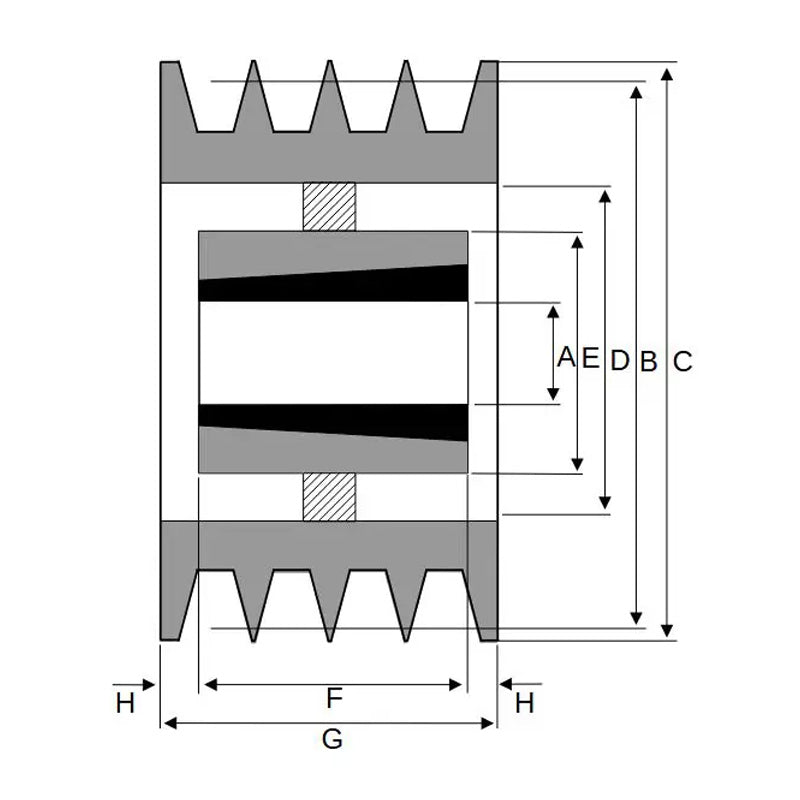

Technical
Number of Grooves 4
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush">3020 Click Here</a>
Pitch Diameter B 280mm
Overall Outer Diameter C 287.6mm
Max Bore A 75mm
Outer Hub Diameter E 144mm
Overall Sheave Depth F 82mm
Bush Seat Length G 51mm
Inner Recess Diameter D 237mm
Inner Recess Length H 15.5mm
