• 280X5SPB 280mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
  • 280X5SPB 280mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
1 2

SKU: 280SPB5-MB

280X5SPB 280mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

280X5SPB 280mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$155.62 ex VAT
$155.62 ex VAT
Sale Sold out

In stock

Price Break
3+ $104.24
5+ $98.38
9+ $97.21
19+ $96.04
49+ $94.87
74+ $93.70
99+ $87.84
199+ $86.67
249+ $85.50
499+ $84.33
999+ $81.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
287.6mm
Pitch Diameter:
280mm
Max Bore:
100mm

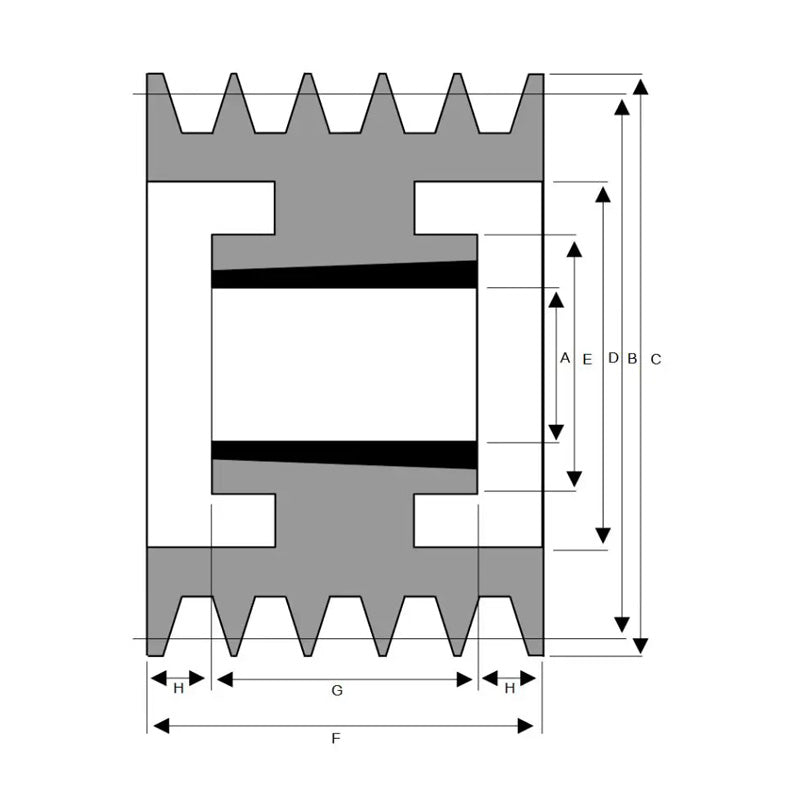

Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3525+tapered+locking+bush">3525 Click Here</a>
Pitch Diameter B 280mm
Overall Outer Diameter C 287.6mm
Max Bore A 100mm
Outer Hub Diameter E 175mm
Overall Sheave Depth F 101mm
Bush Seat Length G 65mm
Inner Recess Diameter D 237mm
Inner Recess Length H 6mm
