• 280X6SPB 280mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
  • 280X6SPB 280mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
1 2

SKU: 280SPB6-MB

280X6SPB 280mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)

280X6SPB 280mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
$183.72 ex VAT
$183.72 ex VAT
Sale Sold out

In stock

Price Break
3+ $123.06
5+ $116.14
9+ $114.76
19+ $113.38
49+ $112.00
74+ $110.61
99+ $103.70
199+ $102.32
249+ $100.93
499+ $99.55
999+ $96.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
6
Outside Diameter:
287.6mm
Pitch Diameter:
280mm
Max Bore:
100mm

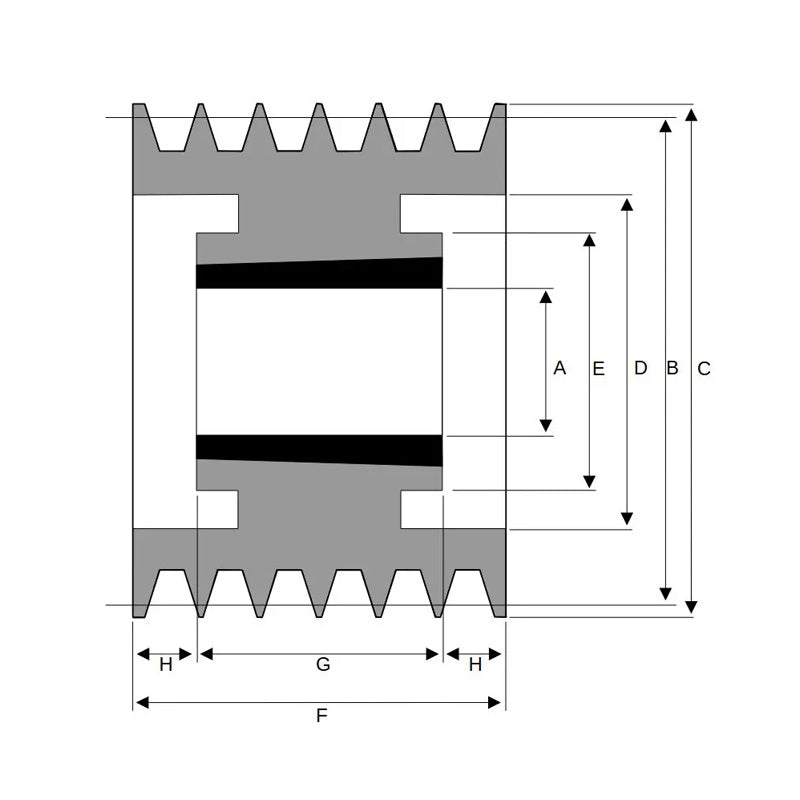

Technical
Number of Grooves 6
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3525+tapered+locking+bush">3525 Click Here</a>
Pitch Diameter B 280mm
Overall Outer Diameter C 287.6mm
Max Bore A 100mm
Outer Hub Diameter E 175mm
Overall Sheave Depth F 120mm
Bush Seat Length G 65mm
Inner Recess Diameter D 237mm
Inner Recess Length H 15.5mm
