• 280X5SPZ 280mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
1 1

SKU: 280SPZ5-MB

280X5SPZ 280mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

280X5SPZ 280mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$82.62 ex VAT
$82.62 ex VAT
Sale Sold out

In stock

Price Break
3+ $55.34
5+ $52.23
9+ $51.61
19+ $50.99
49+ $50.37
74+ $49.75
99+ $46.64
199+ $46.01
249+ $45.39
499+ $44.77
999+ $43.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
284.6mm
Pitch Diameter:
280mm
Max Bore:
60mm

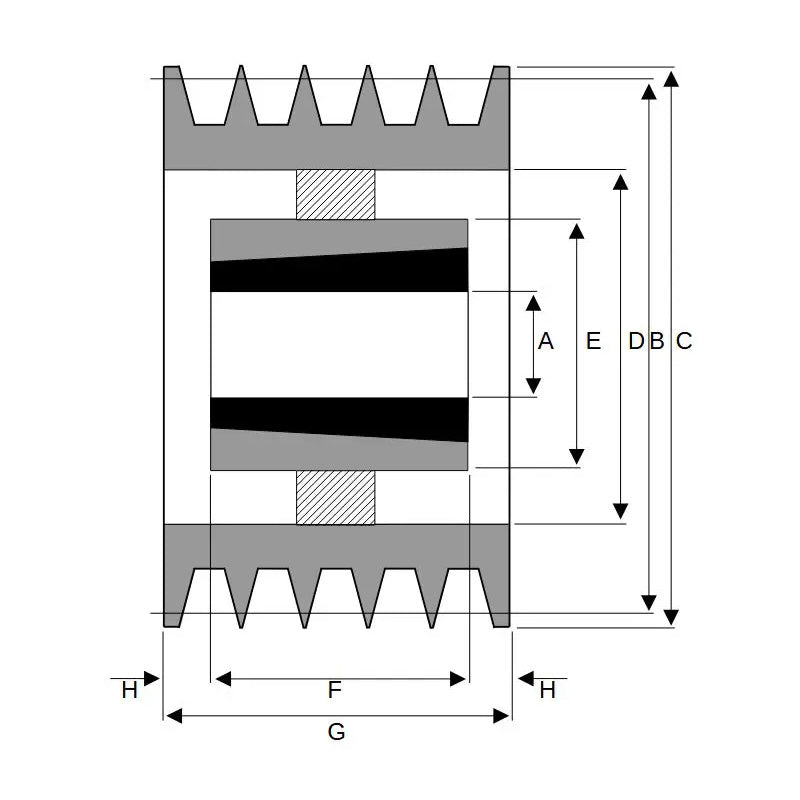

Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2517+tapered+locking+bush">2517 Click Here</a>
Pitch Diameter B 280mm
Overall Outer Diameter C 284.6mm
Max Bore A 60mm
Outer Hub Diameter E 124mm
Overall Sheave Depth F 64mm
Bush Seat Length G 45mm
Inner Recess Diameter D 251mm
Inner Recess Length H 9.5mm
