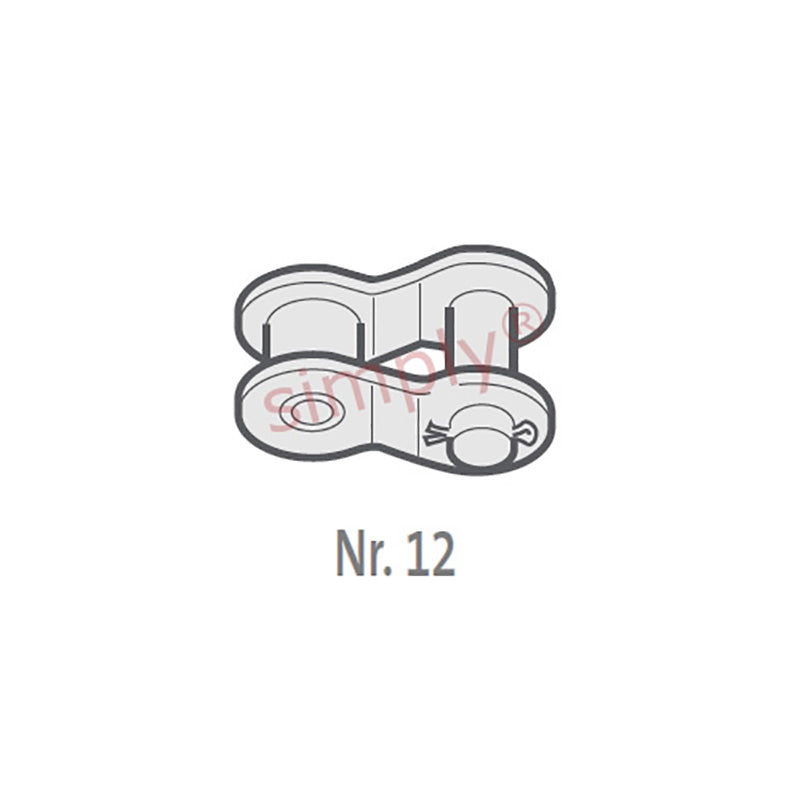

• Branded 28B-1-NO12 BS Simplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
1 1

SKU: 28B-1-NO12-MB

Branded 28B-1-NO12 BS Simplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch

Branded 28B-1-NO12 BS Simplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
$36.10 ex VAT
$36.10 ex VAT
Sale Sold out

Equivalent to: 28B-1-OL

In stock

Price Break
2+ $24.18
5+ $22.83
10+ $22.55
29+ $22.28
49+ $22.01
75+ $21.74
100+ $20.38
200+ $20.11
250+ $19.84
500+ $19.57
1000+ $19.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
44.45mm = 1.75 (1-3/4) inch
Technical
Pitch (A) 1.75 inch
Pitch (A) 44.45mm
Inside Width min (B) 30.99mm
Roller Diameter max (C) 27.94mm
Plate Height max (D) 36.9mm
Plate Width Inner max (E) 7.4mm
Plate Width Outer max (F) 6.4mm
Pin Diameter max (G) 15.9mm
Pin Length max (H1) 64.8mm
Connecting Link Extension max (J) 4.7mm
ISO606 Tensile Strength min 200000 N
Weight 0.13kg/m
