SKU: 28B-2-BB-NO11-RENOLD
Renold Blue Box 28B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch
- Regular price
- $130.21 ex VAT
- Sale price
- $130.21
- Regular price
-
Not in stock
Quantity Price Breaks
2
$115.89
5
$109.38
10
$108.07
29
$106.77
49
$105.47
75
$104.17
100
$97.66
200
$96.36
250
$95.05
500
$93.75
1000
$91.15
SKU:
28B-2-BB-NO11-RENOLD
Renold Blue Box 28B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch
- Regular price
- $130.21 ex VAT
- Sale price
- $130.21
- Regular price
-
Description

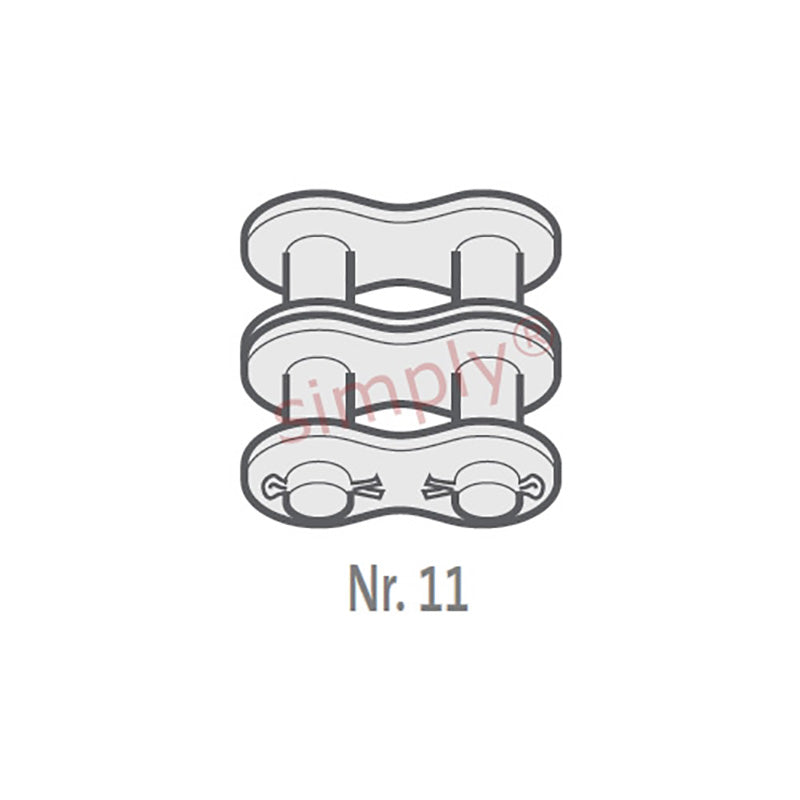

| Renold No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1.75 inch |
| Pitch (A) | = | 44.45mm |
| Inside Width min (B) | = | 30.99mm |
| Roller Diameter max (C) | = | 27.94mm |
| Plate Height max (D) | = | 37.08mm |
| Plate Width Inner max (E) | = | 7.62mm |
| Plate Width Outer max (F) | = | 6.35mm |
| Pin Diameter max (G) | = | 15.9mm |
| Pin Length max (H1) | = | 123.7mm |
| Connecting Link Extension max (J) | = | 6.8mm |
| ISO606 Tensile Strength min | = | 360000 N |
| Weight | = | 0.27kg/m |
