• Branded 28B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch
1 1

SKU: 28B-2-NO11-DUN

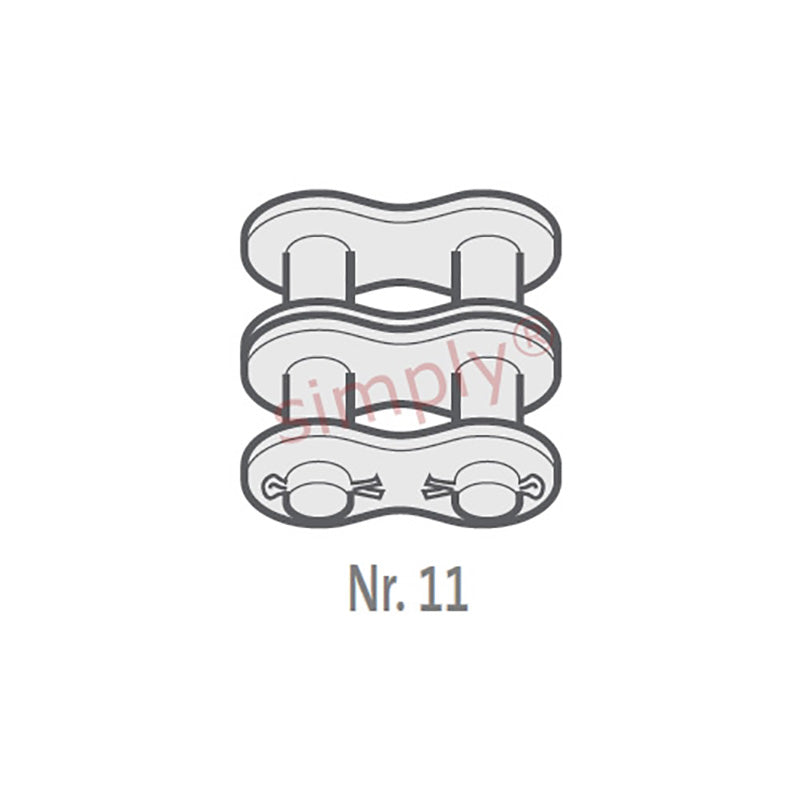

Branded 28B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch

Branded 28B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch
$36.10 ex VAT
$36.10 ex VAT
Sale Sold out

Equivalent to: 28B-2-CL-COT 28B-2-CL

In stock

Price Break
2+ $24.18
5+ $22.83
10+ $22.55
29+ $22.28
49+ $22.01
75+ $21.74
100+ $20.38
200+ $20.11
250+ $19.84
500+ $19.57
1000+ $19.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Branded - Good Quality
Pitch:
44.45mm = 1.75 (1-3/4) inch
Technical
Pitch (A) 1.75 inch
Pitch (A) 44.45mm
Inside Width min (B) 30.99mm
Roller Diameter max (C) 27.94mm
Plate Height max (D) 36.9mm
Plate Width Inner max (E) 7.4mm
Plate Width Outer max (F) 6.4mm
Pin Diameter max (G) 15.9mm
Pin Length max (H2) 124.1mm
Connecting Link Extension max (J) 5mm
Transverse Pitch nom (K) 59.56mm
ISO606 Tensile Strength min 360000 N
Weight 0.27kg/m
