• Renold SD 28B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch
  • Renold
1 2

SKU: 28B-2-SD-NO11-RENOLD

Renold SD 28B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch

Renold SD 28B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch
$54.10 ex VAT
$54.10 ex VAT
Sale Sold out

In stock

Price Break
2+ $36.24
5+ $34.21
10+ $33.80
29+ $33.39
49+ $32.99
75+ $32.58
100+ $30.54
200+ $30.14
250+ $29.73
500+ $29.32
1000+ $28.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

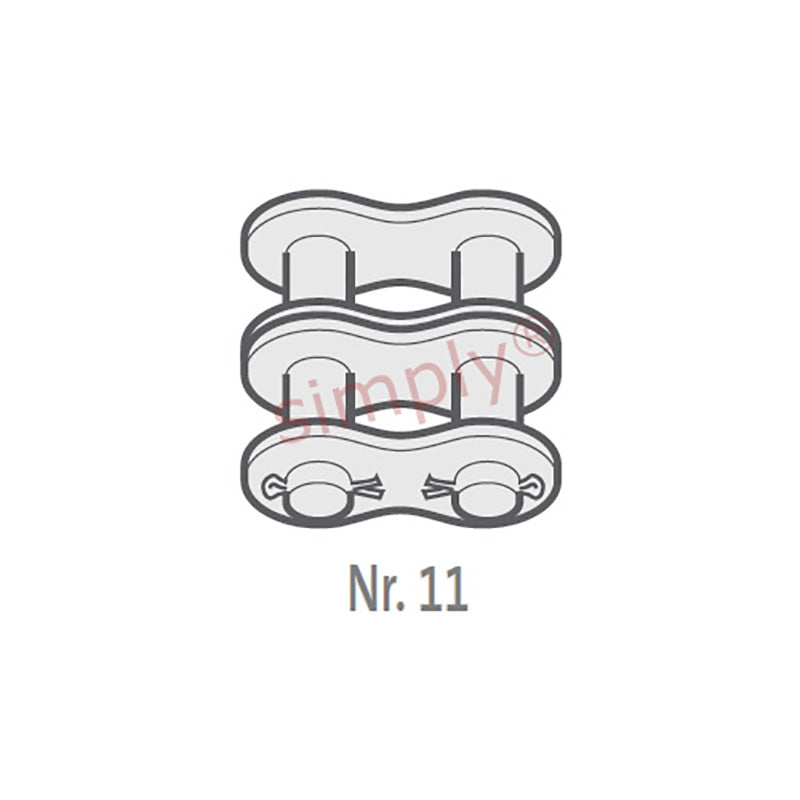

Renold No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Brand / Quality:
Renold - High Quality
Pitch:
44.45mm = 1.75 (1-3/4) inch
Technical
Pitch (A) 1.75 inch
Pitch (A) 44.45mm
Inside Width min (B) 30.99mm
Roller Diameter max (C) 27.94mm
Plate Height max (D) 36.9mm
Plate Width Inner max (E) 7.4mm
Plate Width Outer max (F) 6.4mm
Pin Diameter max (G) 15.9mm
Pin Length max (H2) 124.1mm
Connecting Link Extension max (J) 5mm
Transverse Pitch nom (K) 59.56mm
ISO606 Tensile Strength min 360000 N
Weight 0.27kg/m
