• Branded 28B-3 BS Triplex Roller Chain 1-3/4 inch Pitch 2.5 Metres
1 1

SKU: 28B-3-2.5MTR-MB

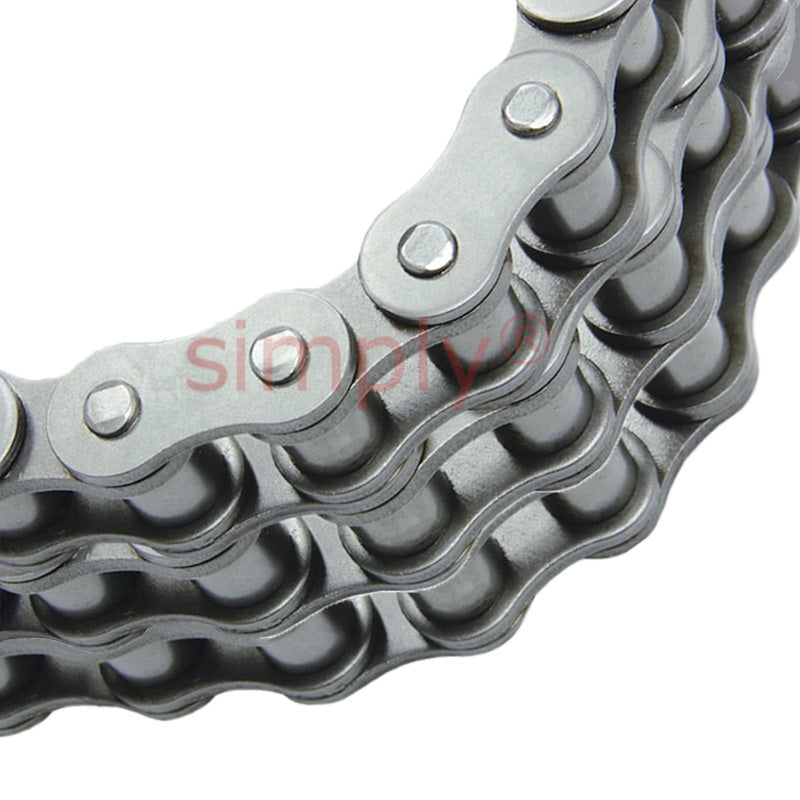

Branded 28B-3 BS Triplex Roller Chain 1-3/4 inch Pitch 2.5 Metres

Branded 28B-3 BS Triplex Roller Chain 1-3/4 inch Pitch 2.5 Metres
$495.71 ex VAT
$495.71 ex VAT
Sale Sold out

In stock

Price Break
2+ $332.04
5+ $313.39
10+ $309.66
29+ $305.93
49+ $302.20
75+ $298.46
100+ $279.81
200+ $276.08
250+ $272.35
500+ $268.62
1000+ $261.16

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
44.45mm = 1.75 (1-3/4) inch
Technical
Pitch (P) 44.45mm = 1.75 (1-3/4) inch
Roller Diameter (D1 max) 27.94mm
Width between inner plates (B1 min) 30.99mm
Pin dia meter (D2 max) 15.9mm
Pin length (L max) 184.2mm
Pin length (Lc max) 188.7mm
Inner plate depth (H2 max) 36.7mm
Plate thickness (T max) 7.5/6.00mm
Ultimate tensile strength (Q min) kN/LB 530.0/120454
Average tensile strength (Q0) kN 609.5
Transverse pitch (Pt) mm 59.56
Weight per meter (q) kg/m 24.92
