• SKF 29230E Spherical Roller Thrust Bearing 150x215x39mm
1 1

SKU: 29230E-SKF

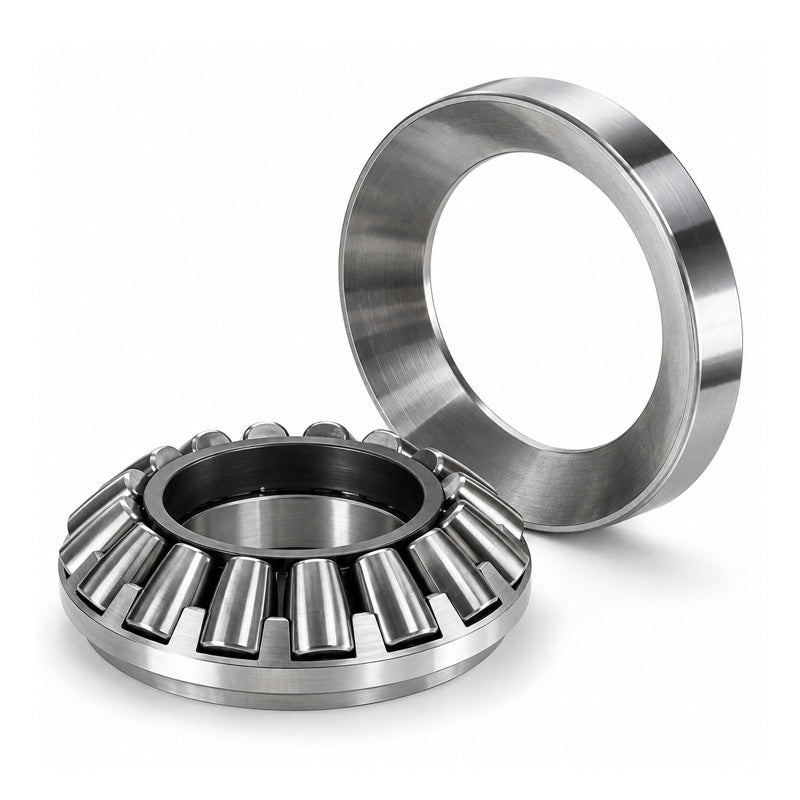

SKF 29230E Spherical Roller Thrust Bearing 150x215x39mm

SKF 29230E Spherical Roller Thrust Bearing 150x215x39mm
$3,164.28 ex VAT
$3,164.28 ex VAT
Sale Sold out

In stock

Price Break
10+ $2,119.53
19+ $2,000.45
29+ $1,976.64
39+ $1,952.82
49+ $1,929.01
74+ $1,905.19
99+ $1,786.12
199+ $1,762.30
249+ $1,738.49
499+ $1,714.67
999+ $1,667.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously.
Benefits: High radial and axial loads, misalignment
Brand / Quality:
SKF - High Quality
Inside Diameter:
150mm
Outside Diameter:
215mm
Width:
39mm
Technical
d 150mm
D 215mm
H 39mm
Dynamic load C 408 kN
Static load Co 1600 kN
Fatigue load limit Pu 180 kN
Minimum load factor A 0.24
Reference speed 1800 rpm
Limiting speed 2800 rpm
Weight 4.3 kg
d1 200.4mm
D1 176mm
B 24mm
B1 34.3mm
C 20.5mm
s 82mm
r1r2 min 1.5mm
da min 180mm
db1 max 154mm
db2 max 154mm
Ha min 14mm
Da max 193mm
ra max 1.5mm
