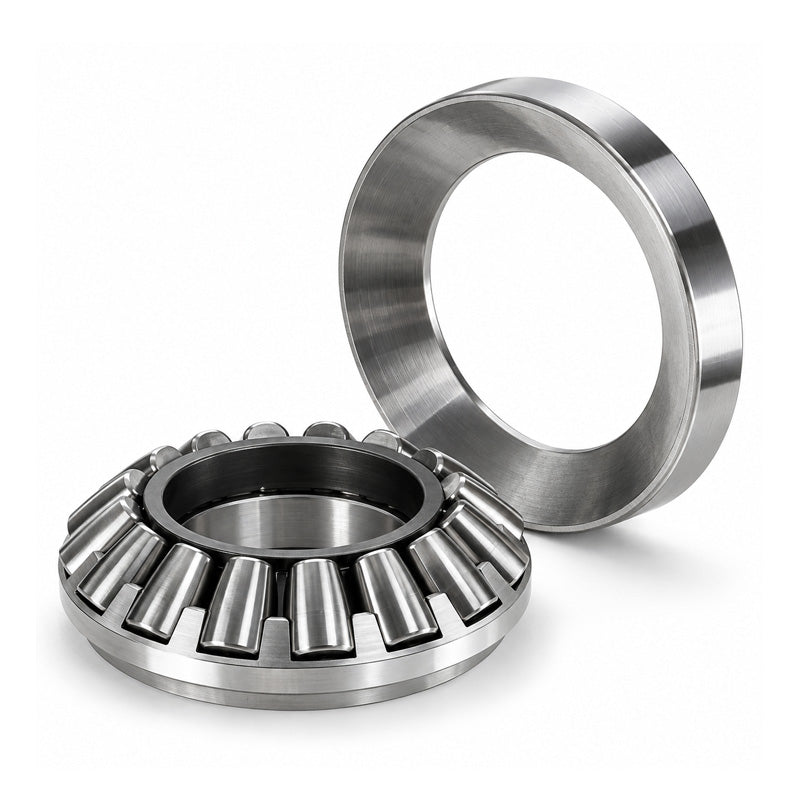

• SKF 29244E Spherical Roller Thrust Bearing 220x300x48mm
1 1

SKU: 29244E-SKF

SKF 29244E Spherical Roller Thrust Bearing 220x300x48mm

SKF 29244E Spherical Roller Thrust Bearing 220x300x48mm
$3,792.42 ex VAT
$3,792.42 ex VAT
Sale Sold out

In stock

Price Break
10+ $2,540.27
19+ $2,397.56
29+ $2,369.02
39+ $2,340.48
49+ $2,311.93
74+ $2,283.39
99+ $2,140.68
199+ $2,112.14
249+ $2,083.60
499+ $2,055.05
999+ $1,997.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously.
Benefits: High radial and axial loads, misalignment
Brand / Quality:
SKF - High Quality
Inside Diameter:
220mm
Outside Diameter:
300mm
Width:
48mm
Technical
d 220mm
D 300mm
H 48mm
Dynamic load C 690 kN
Static load Co 3000 kN
Fatigue load limit Pu 310 kN
Minimum load factor A 0.86
Reference speed 1300 rpm
Limiting speed 2200 rpm
Weight 10 kg
d1 280.5mm
D1 251.5mm
B 30mm
B1 43.4mm
C 24.5mm
s 117mm
r1r2 min 2mm
da min 255mm
db1 max 224.5mm
db2 max 227mm
Ha min 17mm
Da max 271mm
ra max 2mm
