SKU: 2931600EF-SKF

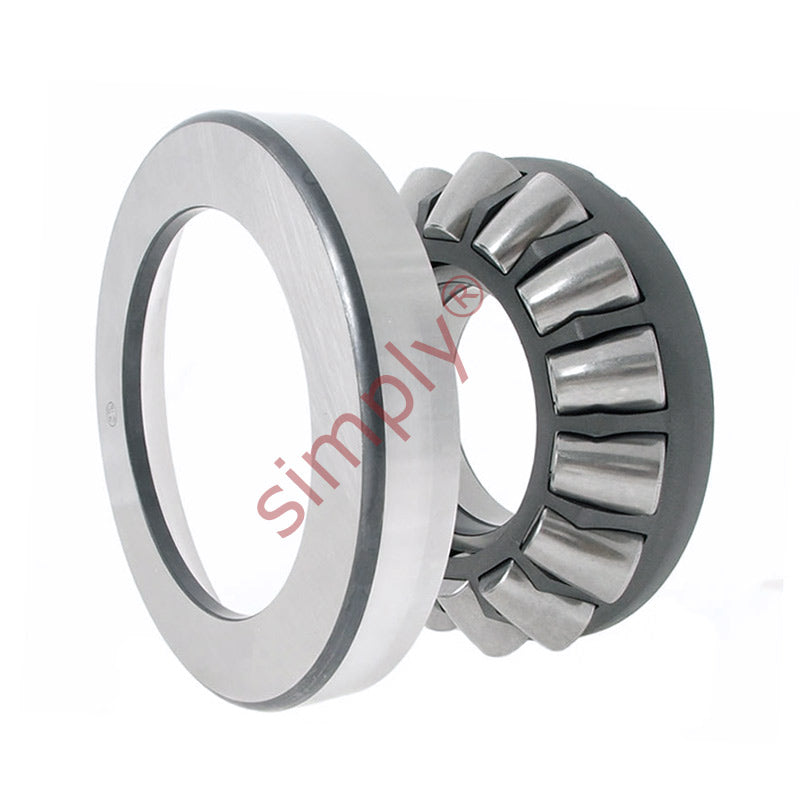

SKF 2931600EF Spherical Roller Thrust Bearing 1600x2280x408mm

Name: SKF 2931600EF Spherical Roller Thrust Bearing 1600x2280x408mm
Brand: SKF
SKU: 2931600EF-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously.
Benefits: High radial and axial loads, misalignment

Brand / Quality:: SKF - High Quality
Inside Diameter:: 1600mm
Outside Diameter:: 2280mm
Width:: 408mm

Technical

d	1600mm
D	2280mm
H	408mm
Dynamic load C	36800 kN
Static load Co	200000 kN
Fatigue load limit Pu	11800 kN
Minimum load factor A	3800
Reference speed	90 rpm
Limiting speed	160 rpm
Weight	5375 kg
d1	2130mm
D1	1885mm
B	166mm
B1	395mm
C	195mm
s	894mm
r1r2 min	19mm
da min	1955mm
Da max	2090mm
ra max	15mm
