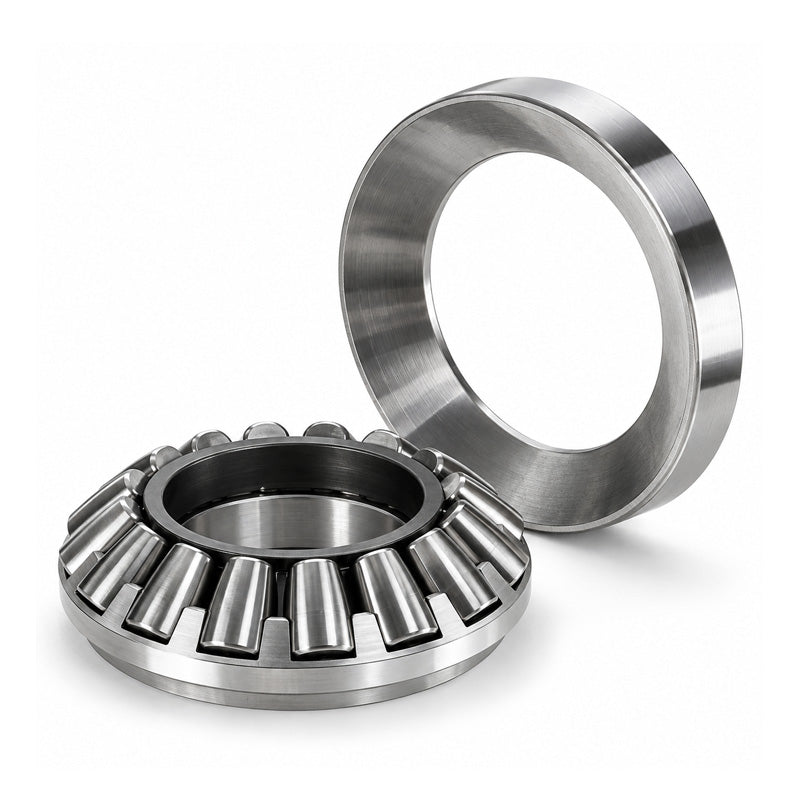

• SKF 29334E Spherical Roller Thrust Bearing 170x280x67mm
1 1

SKU: 29334E-SKF

SKF 29334E Spherical Roller Thrust Bearing 170x280x67mm

SKF 29334E Spherical Roller Thrust Bearing 170x280x67mm
$1,998.63 ex VAT
$1,998.63 ex VAT
Sale Sold out

In stock

Price Break
10+ $1,338.73
19+ $1,263.52
29+ $1,248.48
39+ $1,233.44
49+ $1,218.40
74+ $1,203.36
99+ $1,128.15
199+ $1,113.11
249+ $1,098.06
499+ $1,083.02
999+ $1,052.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously.
Benefits: High radial and axial loads, misalignment
Brand / Quality:
SKF - High Quality
Inside Diameter:
170mm
Outside Diameter:
280mm
Width:
67mm
Technical
d 170mm
D 280mm
H 67mm
Dynamic load C 1200 kN
Static load Co 3550 kN
Fatigue load limit Pu 365 kN
Minimum load factor A 1.2
Reference speed 1300 rpm
Limiting speed 2200 rpm
Weight 15 kg
d1 251.2mm
D1 215mm
B 42.2mm
B1 61mm
C 30.5mm
s 96mm
r1r2 min 3mm
da min 220mm
db1 max 178mm
db2 max 188mm
Da max 245mm
ra max 2.5mm
