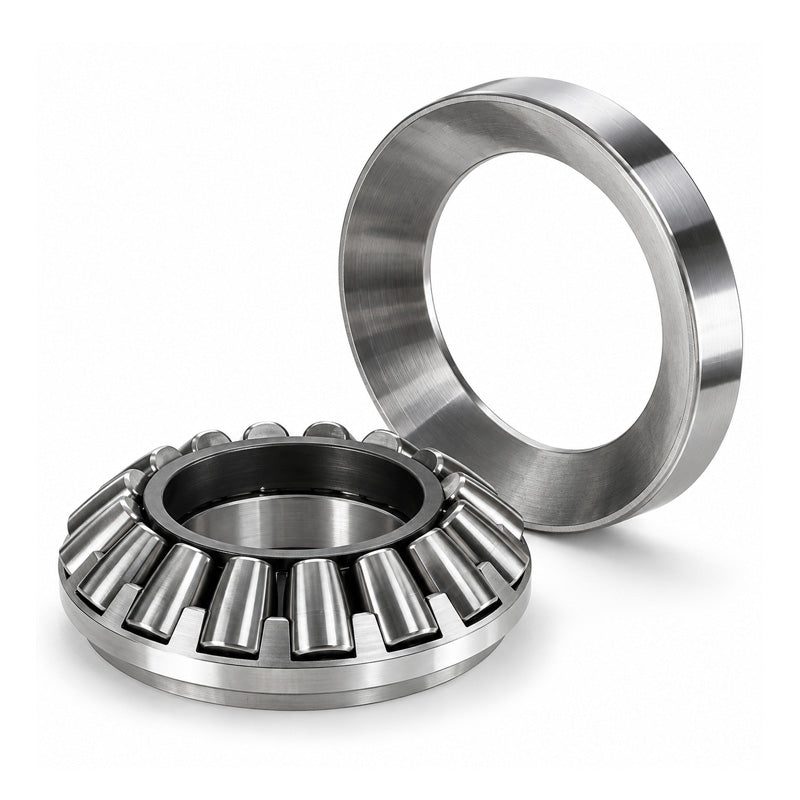

• SKF 29338E Spherical Roller Thrust Bearing 190x320x78mm
1 1

SKU: 29338E-SKF

SKF 29338E Spherical Roller Thrust Bearing 190x320x78mm

SKF 29338E Spherical Roller Thrust Bearing 190x320x78mm
$2,682.25 ex VAT
$2,682.25 ex VAT
Sale Sold out

In stock

Price Break
10+ $1,796.65
19+ $1,695.72
29+ $1,675.53
39+ $1,655.34
49+ $1,635.16
74+ $1,614.97
99+ $1,514.03
199+ $1,493.85
249+ $1,473.66
499+ $1,453.47
999+ $1,413.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously.
Benefits: High radial and axial loads, misalignment
Brand / Quality:
SKF - High Quality
Inside Diameter:
190mm
Outside Diameter:
320mm
Width:
78mm
Technical
d 190mm
D 320mm
H 78mm
Dynamic load C 1630 kN
Static load Co 4750 kN
Fatigue load limit Pu 490 kN
Minimum load factor A 2.1
Reference speed 1100 rpm
Limiting speed 1900 rpm
Weight 23.5 kg
d1 285.6mm
D1 243.5mm
B 49mm
B1 71.3mm
C 36mm
s 110mm
r1r2 min 4mm
da min 250mm
db1 max 200mm
db2 max 211mm
Da max 280mm
ra max 3mm
