• SKF 29418E Spherical Roller Thrust Bearing 90x190x60mm
1 1

SKU: 29418E-SKF

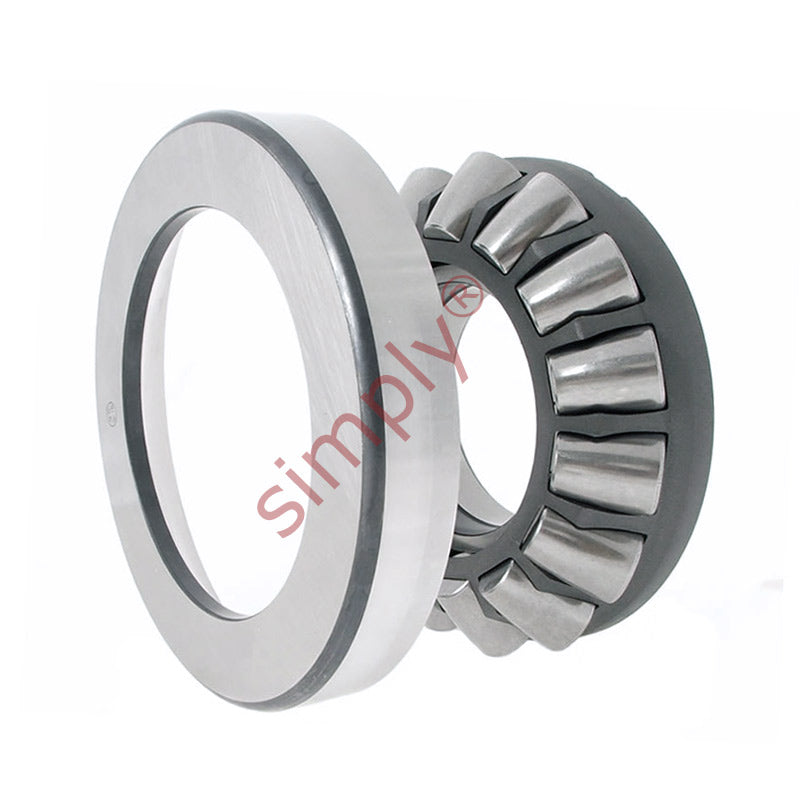

SKF 29418E Spherical Roller Thrust Bearing 90x190x60mm

SKF 29418E Spherical Roller Thrust Bearing 90x190x60mm
$990.46 ex VAT
$990.46 ex VAT
Sale Sold out

In stock

Price Break
10+ $663.44
19+ $626.17
29+ $618.71
39+ $611.26
49+ $603.80
74+ $596.35
99+ $559.08
199+ $551.62
249+ $544.17
499+ $536.71
999+ $521.80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously.
Benefits: High radial and axial loads, misalignment
Brand / Quality:
SKF - High Quality
Inside Diameter:
90mm
Outside Diameter:
190mm
Width:
60mm
Technical
d 90mm
D 190mm
H 60mm
Dynamic load C 815 kN
Static load Co 2000 kN
Fatigue load limit Pu 232 kN
Minimum load factor A 0.38
Reference speed 1900 rpm
Limiting speed 3400 rpm
Weight 7.75 kg
d1 164.6mm
D1 127.5mm
B 39mm
B1 54mm
C 28.5mm
s 56mm
r1r2 min 2.1mm
da min 135mm
db1 max 99mm
db2 max 99mm
Da max 158mm
ra max 2mm
