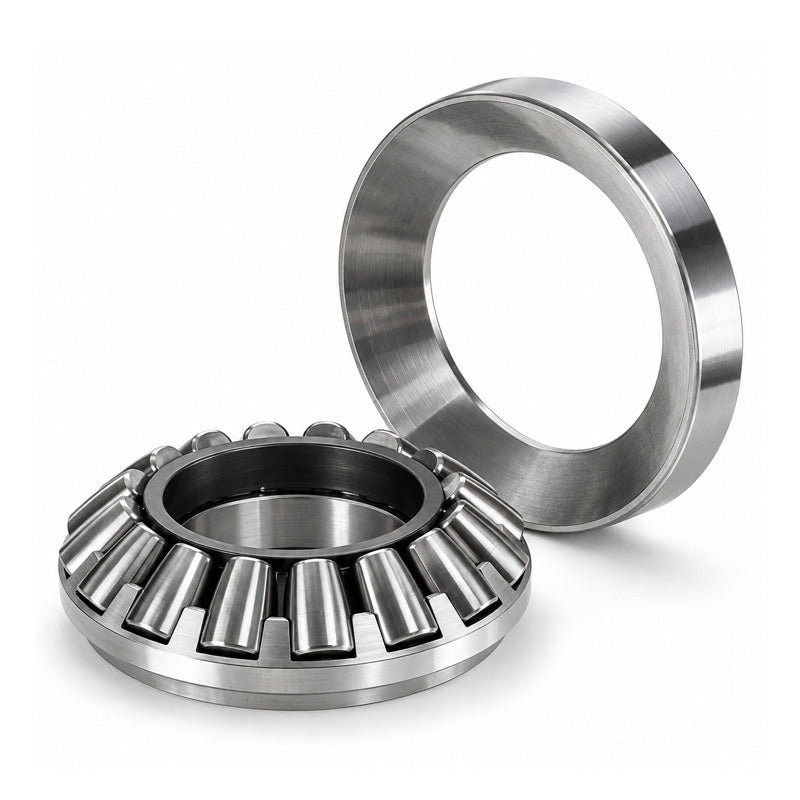

• SKF 29424E Spherical Roller Thrust Bearing 120x250x78mm
1 1

SKU: 29424E-SKF

SKF 29424E Spherical Roller Thrust Bearing 120x250x78mm

SKF 29424E Spherical Roller Thrust Bearing 120x250x78mm
$1,675.11 ex VAT
$1,675.11 ex VAT
Sale Sold out

In stock

Price Break
10+ $1,121.87
19+ $1,058.84
29+ $1,046.24
39+ $1,033.63
49+ $1,021.03
74+ $1,008.42
99+ $945.39
199+ $932.79
249+ $920.18
499+ $907.58
999+ $882.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously.
Benefits: High radial and axial loads, misalignment
Brand / Quality:
SKF - High Quality
Inside Diameter:
120mm
Outside Diameter:
250mm
Width:
78mm
Technical
d 120mm
D 250mm
H 78mm
Dynamic load C 1370 kN
Static load Co 3450 kN
Fatigue load limit Pu 375 kN
Minimum load factor A 1.1
Reference speed 1500 rpm
Limiting speed 2600 rpm
Weight 17.5 kg
d1 216.8mm
D1 171mm
B 50.5mm
B1 70.3mm
C 36.5mm
s 74mm
r1r2 min 4mm
da min 180mm
db1 max 132mm
db2 max 142mm
Da max 209mm
ra max 3mm
