SKU: 294750EF-SKF

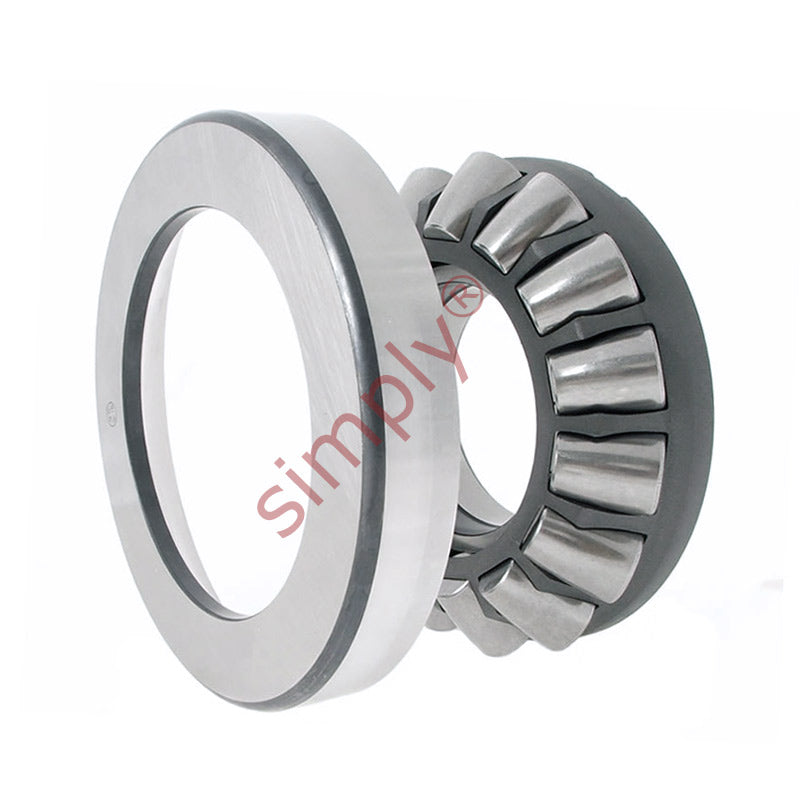

SKF 294750EF Spherical Roller Thrust Bearing 750x1280x315mm

Name: SKF 294750EF Spherical Roller Thrust Bearing 750x1280x315mm
Brand: SKF
SKU: 294750EF-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously.
Benefits: High radial and axial loads, misalignment

Brand / Quality:: SKF - High Quality
Inside Diameter:: 750mm
Outside Diameter:: 1280mm
Width:: 315mm

Technical

d	750mm
D	1280mm
H	315mm
Dynamic load C	18700 kN
Static load Co	85000 kN
Fatigue load limit Pu	5500 kN
Minimum load factor A	690
Reference speed	200 rpm
Limiting speed	400 rpm
Weight	1650 kg
d1	1170mm
D1	964mm
B	121mm
B1	305mm
C	153mm
s	436mm
r1r2 min	15mm
da min	1015mm
Da max	1120mm
ra max	12mm
