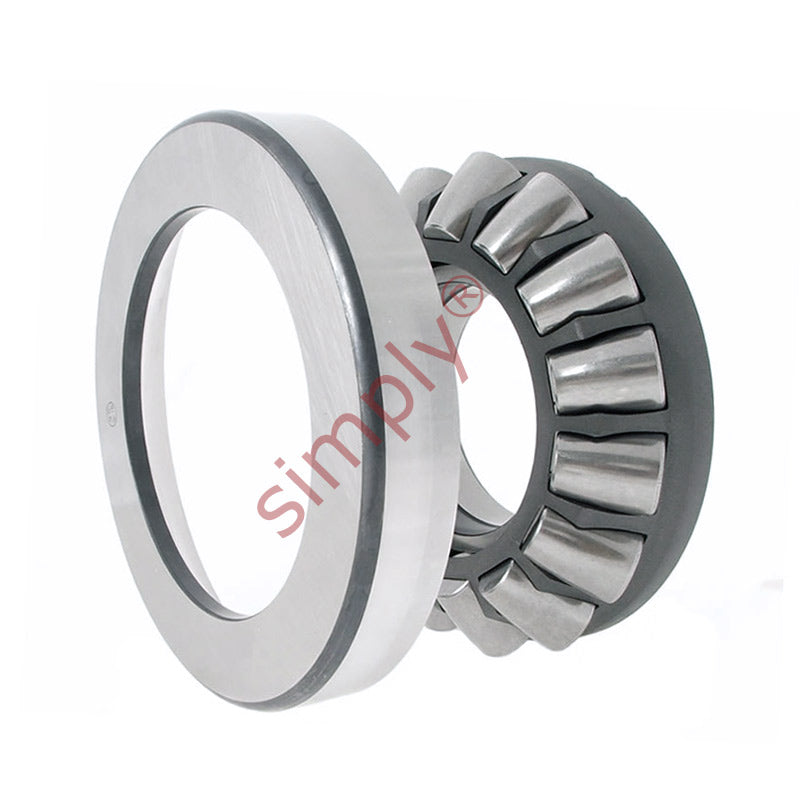

SKF 29476EM Spherical Roller Thrust Bearing 380x670x175mm

Name: SKF 29476EM Spherical Roller Thrust Bearing 380x670x175mm
Brand: SKF
SKU: 29476EM-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously.
Benefits: High radial and axial loads, misalignment

Brand / Quality:: SKF - High Quality
Inside Diameter:: 380mm
Outside Diameter:: 670mm
Width:: 175mm

Technical

d	380mm
D	670mm
H	175mm
Dynamic load C	5870 kN
Static load Co	24000 kN
Fatigue load limit Pu	1860 kN
Minimum load factor A	55
Reference speed	480 rpm
Limiting speed	900 rpm
Weight	260 kg
d1	610mm
D1	494mm
B	67mm
B1	168mm
C	87.5mm
s	222mm
r1r2 min	7.5mm
da min	525mm
Da max	580mm
ra max	6mm
