SKU: 294850EF-SKF

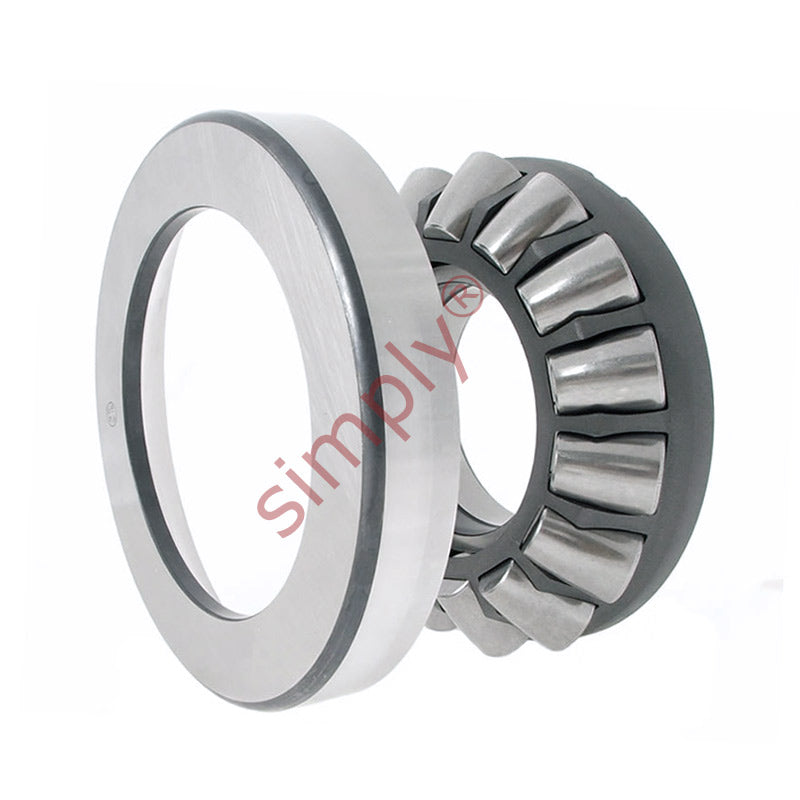

SKF 294850EF Spherical Roller Thrust Bearing 850x1440x354mm

Name: SKF 294850EF Spherical Roller Thrust Bearing 850x1440x354mm
Brand: SKF
SKU: 294850EF-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously.
Benefits: High radial and axial loads, misalignment

Brand / Quality:: SKF - High Quality
Inside Diameter:: 850mm
Outside Diameter:: 1440mm
Width:: 354mm

Technical

d	850mm
D	1440mm
H	354mm
Dynamic load C	23900 kN
Static load Co	108000 kN
Fatigue load limit Pu	7100 kN
Minimum load factor A	1100
Reference speed	170 rpm
Limiting speed	340 rpm
Weight	2390 kg
d1	1315mm
D1	1077mm
B	142mm
B1	342mm
C	172mm
s	507mm
r1r2 min	15mm
da min	1160mm
Da max	1270mm
ra max	12mm
