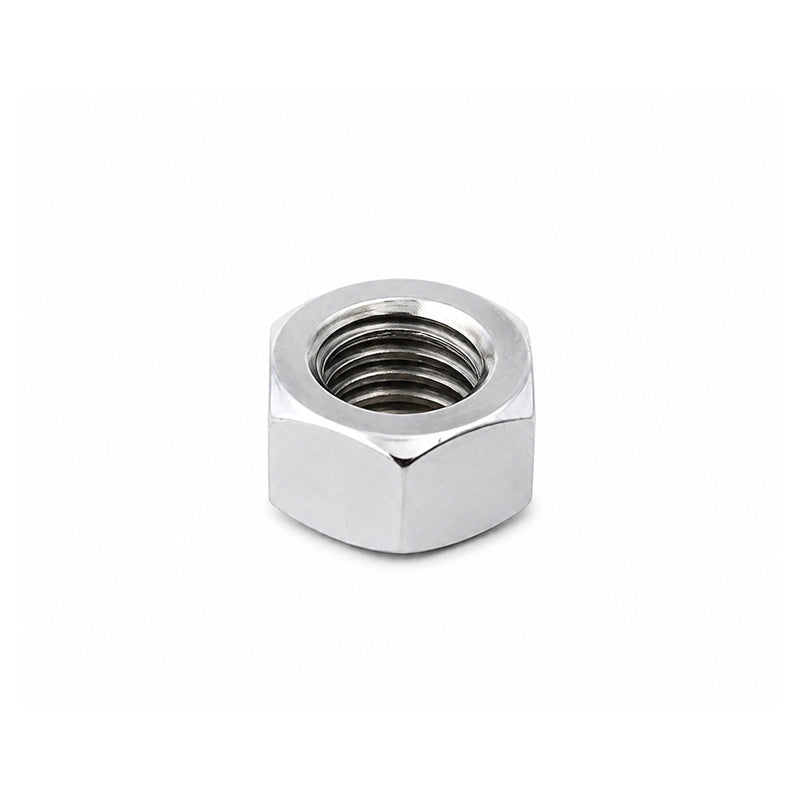

• 3/16 UNC Bright Zinc Plated High Tensile Steel Nut
1 1

SKU: 3/16-UNC-NUT10

3/16 UNC Bright Zinc Plated High Tensile Steel Nut

3/16 UNC Bright Zinc Plated High Tensile Steel Nut
$1.13 ex VAT
$1.13 ex VAT
Sale Sold out

In stock

Price Break
10+ $0.43
20+ $0.29
50+ $0.18
100+ $0.15
500+ $0.09
1000+ $0.08

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Nuts: A standard 6 sided bright zinc plated high tensile steel nut. A type of fastener with a threaded hole. Nuts are almost always used opposite a mating bolt to fasten a stack of parts together. The two partners are kept together by a combination of their threads' friction, a slight stretch of the bolt, and compression of the parts.
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
3/16 inch UNC
Outside Diameter:
8.89mm = 0.35 inch approx.
Thickness:
3.05mm = 0.12 inch approx.
Pitch:
24 (TPI)
Technical
Inside Diameter (d) 4.76mm = 0.187 (3/16) inch approx.
Outside Diameter (D) 8.89mm = 0.35 inch approx.
Width (a) 3.05mm = 0.12 inch approx.
TPI (Threads Per Inch) 24 TPI
