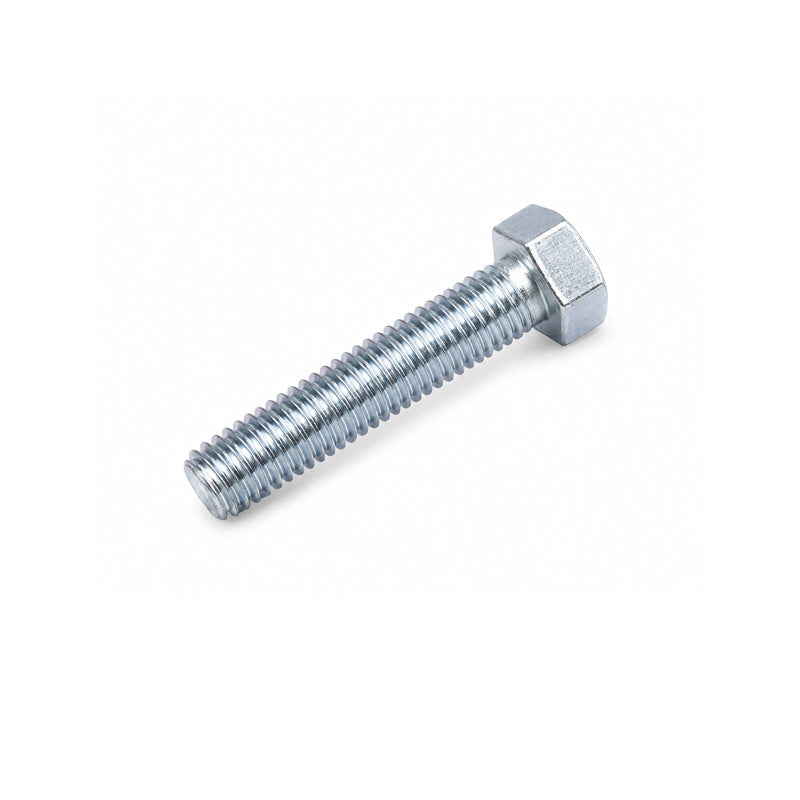

• 3/16x1 UNF Bright Zinc Plated Set Screw
1 1

SKU: 3/16X1-UNF-SET30

3/16x1 UNF Bright Zinc Plated Set Screw

3/16x1 UNF Bright Zinc Plated Set Screw
$1.14 ex VAT
$1.14 ex VAT
Sale Sold out

In stock

Price Break
10+ $0.47
20+ $0.36
50+ $0.26
100+ $0.21
500+ $0.17
1000+ $0.13
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Set Screw: A set screw is a type of screw generally used to secure an object within or against another object. The most common examples are securing a pulley or gear to a shaft.
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
3/16x1 UNF
Width of Head:
7.62mm = 0.3 inch approx.
Depth of Head:
2.54mm = 0.1 inch approx.
Pitch:
24 (TPI)
Technical
Width of head (a) 7.62mm = 0.3 inch approx.
Depth of head (d) 2.54mm = 0.1 inch approx.
Head to screw (D) 25.4mm = 1 inch
Overall length (d+D) Thread diameter (f)
4.76mm = 0.187 (3/16) inch TPI (Threads Per Inch)
24 TPI N/A
