SKU: 30/8-2RS-EU

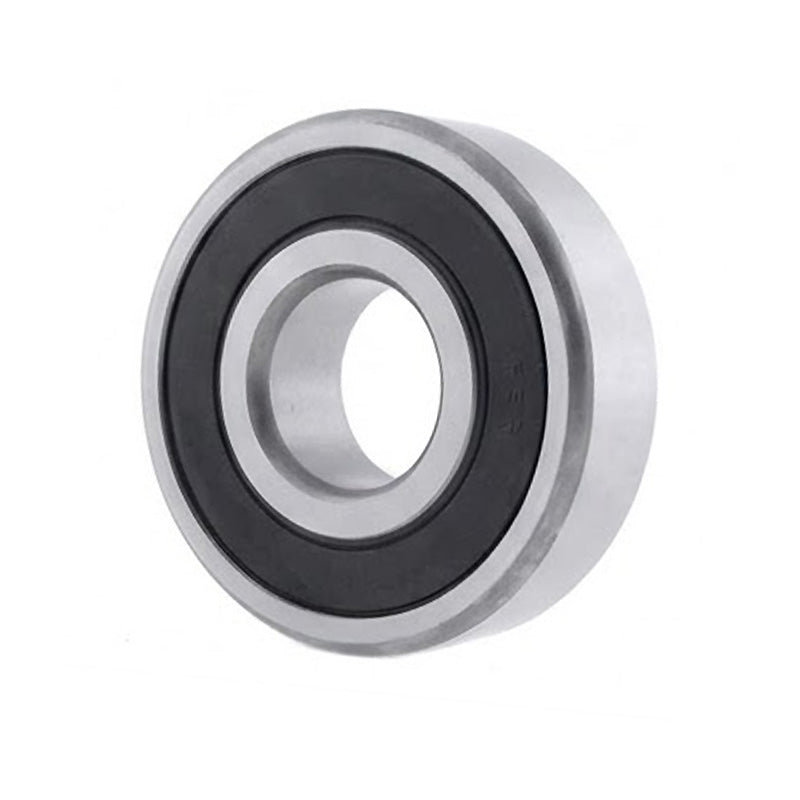

Budget 30/82RS Rubber Sealed Double Row Angular Contact Ball Bearing 8x22x11mm
Budget 30/82RS Rubber Sealed Double Row Angular Contact Ball Bearing 8x22x11mm
Regular price
$12.74
ex VAT
Regular price
Sale price
$12.74
ex VAT
Equivalent to: 30/82RS
In stock
Price Break
10+
$8.53
19+
$8.05
29+
$7.96
39+
$7.86
49+
$7.76
74+
$7.67
99+
$7.19
199+
$7.09
249+
$7.00
499+
$6.90
999+
$6.71
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 22mm
- Width:
- 11mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 8mm |
|---|---|
| D | 22mm |
| B | 11mm |
| a | 10.7mm |
| da min | 10mm |
| Da max | 20mm |
| ra max | 0.3mm |
| r min | 0.3mm |
| Contact angle | 25 degrees |
| Basic Dynamic Load Raiting | 5200 N |
| Basic Static Load Raiting | 2650 N |
| Fatigue Load Limit | 133 N |
| Limiting Speed | 14000 rpm |
| Weight | 0.022 kg |
