SKU: 3000-2RS-EU

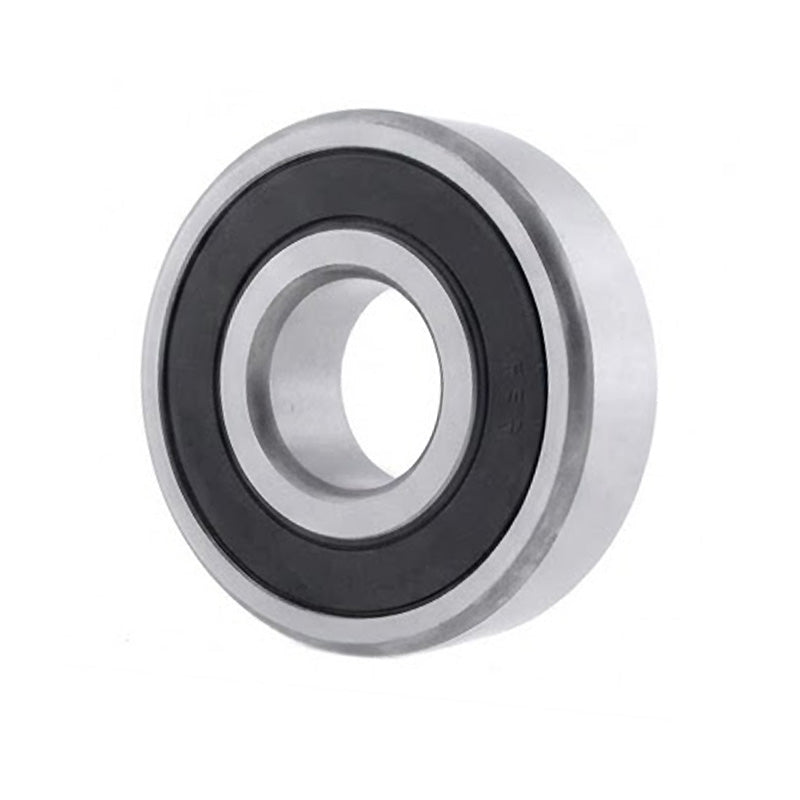

Budget 30002RS Rubber Sealed Double Row Angular Contact Ball Bearing 10x26x12mm

Name: Budget 30002RS Rubber Sealed Double Row Angular Contact Ball Bearing 10x26x12mm
Brand: Gen
SKU: 3000-2RS-EU
Price: 13.50 USD
Availability: InStock

$13.50 ex VAT

Sale Sold out

Equivalent to: 3000B2RSTVH

In stock

Price Break

10+ $9.05

19+ $8.54

29+ $8.44

39+ $8.33

49+ $8.23

74+ $8.13

99+ $7.62

199+ $7.52

249+ $7.42

499+ $7.32

999+ $7.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 10mm
Outside Diameter:: 26mm
Width:: 12mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	10mm
D	26mm
B	12mm
a	12.6mm
d2	14.2mm
D2	21.2mm
da min	12mm
Da max	24mm
ra max	0.3mm
r min	0.3mm
Contact angle	25 degrees
Basic Dynamic Load Raiting	5700 N
Basic Static Load Raiting	3200 N
Fatigue Load Limit	166 N
Limiting Speed	18100 rpm
Weight	0.022 kg
