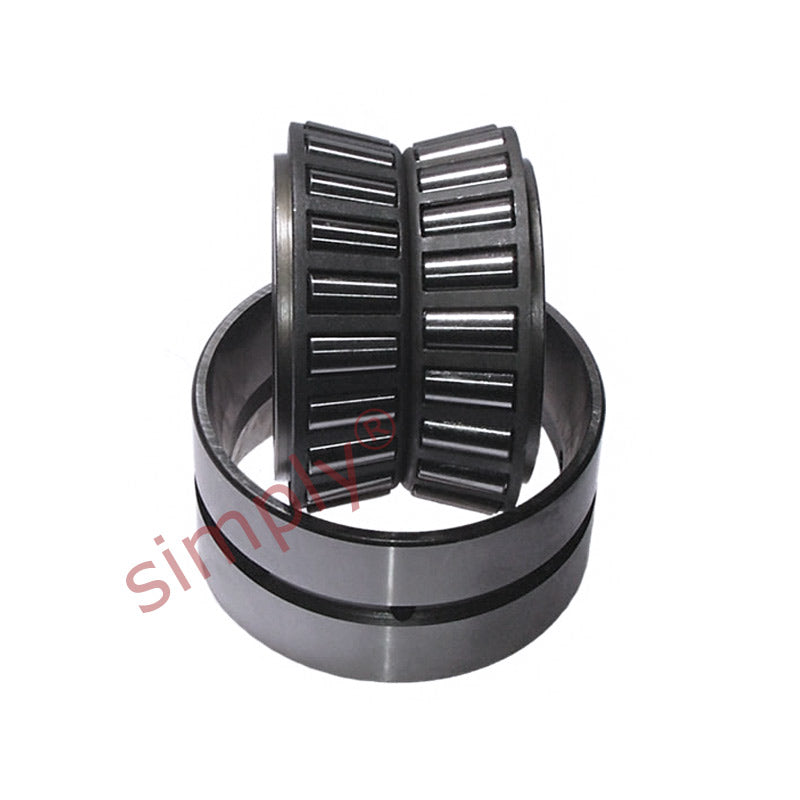

• SKF 30222J2/DF Single Row Taper Roller Bearings Paired Face to Face 110x200x82mm
1 1

SKU: 30222J2/DF-SKF

SKF 30222J2/DF Single Row Taper Roller Bearings Paired Face to Face 110x200x82mm

SKF 30222J2/DF Single Row Taper Roller Bearings Paired Face to Face 110x200x82mm
$2,858.52 ex VAT
$2,858.52 ex VAT
Sale Sold out

In stock

Price Break
10+ $1,914.72
19+ $1,807.15
29+ $1,785.64
39+ $1,764.13
49+ $1,742.61
74+ $1,721.10
99+ $1,613.53
199+ $1,592.02
249+ $1,570.50
499+ $1,548.99
999+ $1,505.96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Paired Metric Taper Roller Bearing Sets: These bearings have tapered inner and outer raceways between which tapered roller are arranged and are mounted in matched pairs either facing each other or back to back on a common dual outer raceway. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads typical of those experienced in wheel hubs or heavy rolling machinery.
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
SKF - High Quality
Inside Diameter:
110mm
Outside Diameter:
200mm
Width:
82mm
Seals / Shields:
None
Technical
d 110mm
D 200mm
T 82mm
Dynamic load 523 kN
Static load 800 kN
Fatigue load limit Pu 90 kN
Reference speed 2000 rpm
Limiting speed 3200 rpm
Weight 10.5 kg
2B 76mm
r3r4 2.5mm
r5 1mm
da max 129mm
da min 174mm
Da max 188mm
Ca min 6mm
ra max 2mm
rc max 1mm
Calculation Factor e 0.43
Calculation Factor Y1 1.6
Calculation Factor Y2 2.3
Calculation Factor Y0 1.6
