SKU: 30320J2-SKF

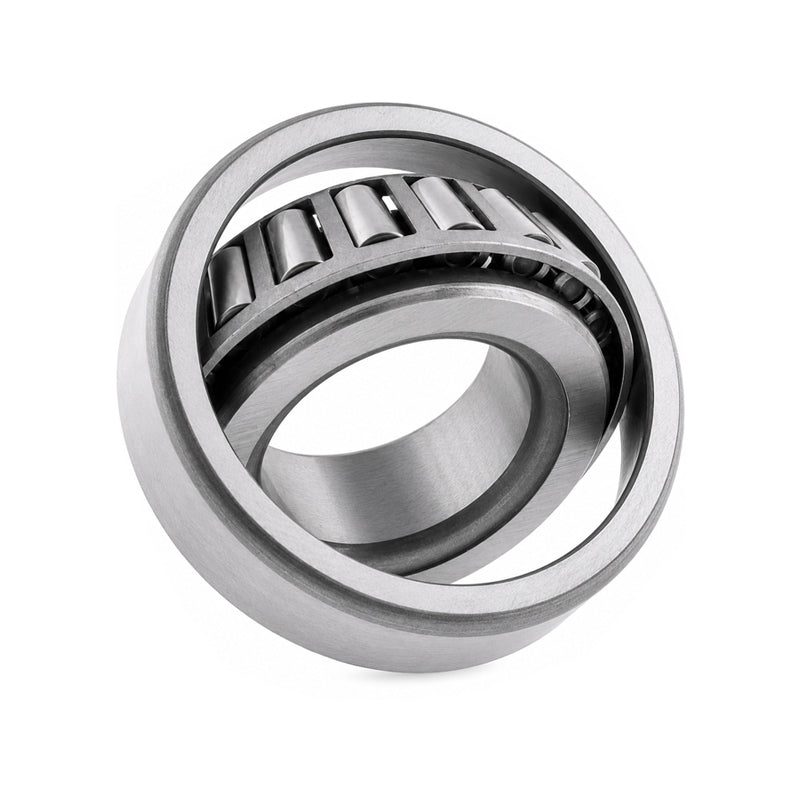

SKF 30320J2 Metric Single Row Taper Roller Bearing 100x215x51.5mm
SKF 30320J2 Metric Single Row Taper Roller Bearing 100x215x51.5mm
Out of stock
Description
Description
|
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 215mm
- Width:
- 51.5mm
- Seals / Shields:
- None
Technical
Technical
| d | 100mm |
|---|---|
| D | 215mm |
| T | 51.5mm |
| Dynamic load | 402 kN |
| Static load | 490 kN |
| Fatigue load limit Pu | 53 kN |
| Reference speed | 2400 rpm |
| Limiting speed | 3200 rpm |
| Weight | 8.05 kg |
| d1 | 148mm |
| B | 47mm |
| C | 39mm |
| r1r2 min | 4mm |
| r3r4 min | 3mm |
| a | 40mm |
| da max | 127mm |
| db min | 115mm |
| Da min | 184mm |
| Da max | 201mm |
| Db min | 197mm |
| Ca min | 6mm |
| Cb min | 12.5mm |
| ra max | 3mm |
| rb max | 2.5mm |
| Calculation factor e | 0.35 |
| Calculation factor Y | 1.7 |
| Calculation factor Y0 | 0.9 |
