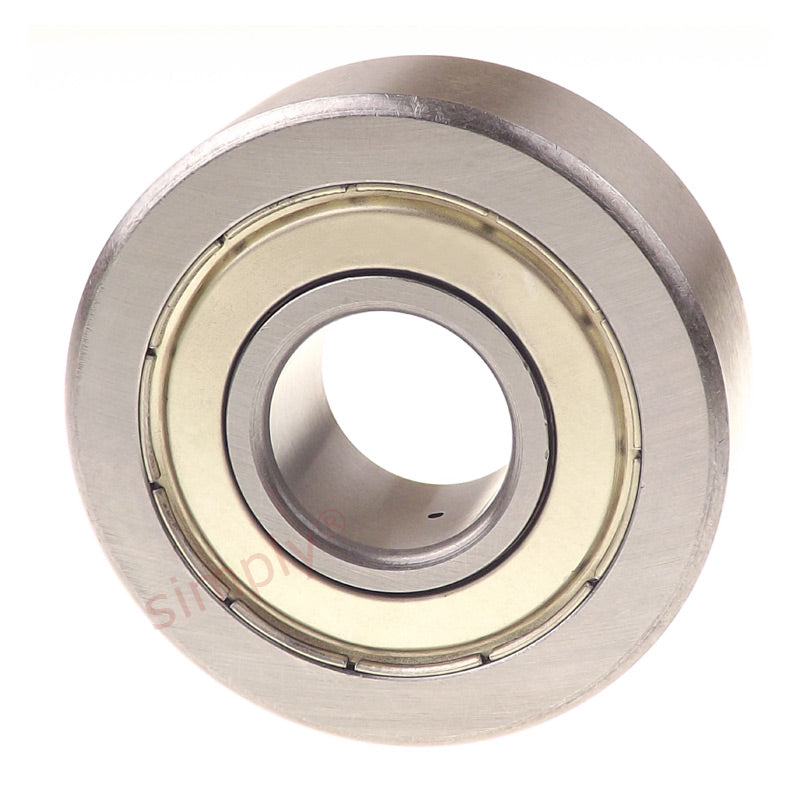

• SKF 305701C2Z Double Row Cam Roller Bearing with Parallel Running Surface 12x35x15.9mm
1 1

SKU: 305701C-2Z-SKF

SKF 305701C2Z Double Row Cam Roller Bearing with Parallel Running Surface 12x35x15.9mm

SKF 305701C2Z Double Row Cam Roller Bearing with Parallel Running Surface 12x35x15.9mm
$62.57 ex VAT
$62.57 ex VAT
Sale Sold out

Low stock

Price Break
10+ $41.91
19+ $39.55
29+ $39.08
39+ $38.61
49+ $38.14
74+ $37.67
99+ $35.32
199+ $34.84
249+ $34.37
499+ $33.90
999+ $32.96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Double Row Cam Rollers: Are special variants of deep groove ball bearings which have thicker outer races to allow for running in tracks as rollers where misalignment and shock loads may be present. They have the same characteristics as normal deep groove ball bearings, generally have seals although some unsealed versions are available and can also be used in place of standard bearings. They are available with parallel outside diameter or crowned (spherical) for applications where greater misalignment needs to be catered for.
Benefits: Tolerate high loads, shock loads, misalignment when running in tracks
Brand / Quality:
SKF - High Quality
Inside Diameter:
12mm
Outside Diameter:
35mm
Width:
15.9mm
Seals / Shields:
Metal Shielded
Technical
d 12mm
D 35mm
B 15.9mm
d1 19.1mm
D1 27.7mm
r1r2 min 0.6mm
a 16.5mm
Limiting speed 9500 rpm
Mass 0.078 kg
Dynamic load C 9.56 kN
Static load Co 4.9 kN
Fatigue load limit Pu 0.208 kN
Max radial load 3.8 kN
Max static load 5.4 kN
