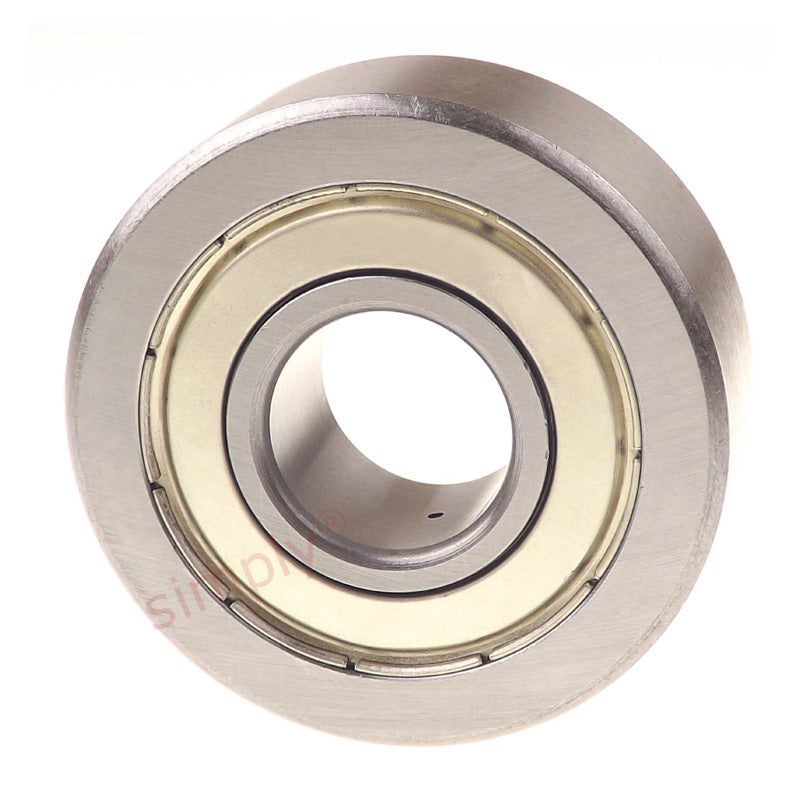

• SKF 305706C2Z Double Row Cam Roller Bearing with Parallel Running Surface 30x72x23.8mm
1 1

SKU: 305706C-2Z-SKF

SKF 305706C2Z Double Row Cam Roller Bearing with Parallel Running Surface 30x72x23.8mm

SKF 305706C2Z Double Row Cam Roller Bearing with Parallel Running Surface 30x72x23.8mm
$104.42 ex VAT
$104.42 ex VAT
Sale Sold out

In stock

Price Break
10+ $69.95
19+ $66.02
29+ $65.23
39+ $64.44
49+ $63.66
74+ $62.87
99+ $58.94
199+ $58.16
249+ $57.37
499+ $56.58
999+ $55.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Double Row Cam Rollers: Are special variants of deep groove ball bearings which have thicker outer races to allow for running in tracks as rollers where misalignment and shock loads may be present. They have the same characteristics as normal deep groove ball bearings, generally have seals although some unsealed versions are available and can also be used in place of standard bearings. They are available with parallel outside diameter or crowned (spherical) for applications where greater misalignment needs to be catered for.
Benefits: Tolerate high loads, shock loads, misalignment when running in tracks
Brand / Quality:
SKF - High Quality
Inside Diameter:
30mm
Outside Diameter:
72mm
Width:
23.8mm
Seals / Shields:
Metal Shielded
Technical
d 30mm
D 72mm
B 23.8mm
d1 41.4mm
D1 55.2mm
r1r2 min 1mm
a 31mm
Limiting speed 5000 rpm
Mass 0.49 kg
Dynamic load C 27.6 kN
Static load Co 18.6 kN
Fatigue load limit Pu 0.8 kN
Max radial load 17 kN
Max static load 24 kN
