• SKF 305803C2Z Double Row Cam Roller Bearing with Crowned Running Surface 17x47x17.5mm
1 1

SKU: 305803C-2Z-SKF

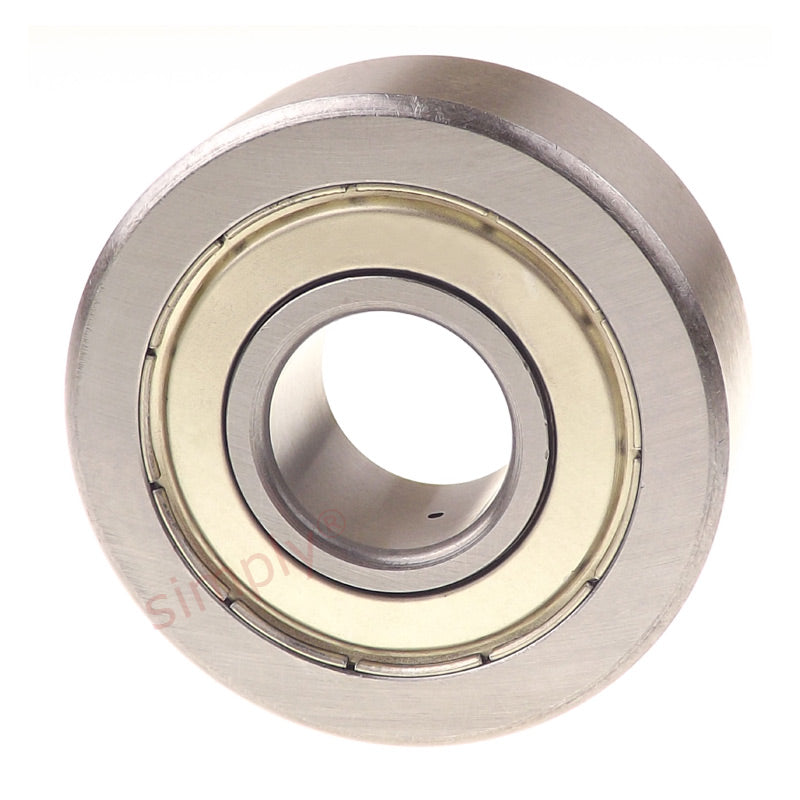

SKF 305803C2Z Double Row Cam Roller Bearing with Crowned Running Surface 17x47x17.5mm

SKF 305803C2Z Double Row Cam Roller Bearing with Crowned Running Surface 17x47x17.5mm
$69.80 ex VAT
$69.80 ex VAT
Sale Sold out

In stock

Price Break
10+ $46.75
19+ $44.13
29+ $43.60
39+ $43.08
49+ $42.55
74+ $42.03
99+ $39.40
199+ $38.87
249+ $38.35
499+ $37.82
999+ $36.77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Double Row Cam Rollers: Are special variants of deep groove ball bearings which have thicker outer races to allow for running in tracks as rollers where misalignment and shock loads may be present. They have the same characteristics as normal deep groove ball bearings, generally have seals although some unsealed versions are available and can also be used in place of standard bearings. They are available with parallel outside diameter or crowned (spherical) for applications where greater misalignment needs to be catered for.
Benefits: Tolerate high loads, shock loads, misalignment when running in tracks
Brand / Quality:
SKF - High Quality
Inside Diameter:
17mm
Outside Diameter:
47mm
Width:
17.5mm
Seals / Shields:
Metal Shielded
Technical
d 17mm
D 47mm
B 17.5mm
d1 25.2mm
D1 35mm
r1r2 min 0.6mm
a 20mm
Limiting speed 8000 rpm
Mass 0.16 kg
Dynamic load C 413.5 kN
Static load Co 7.8 kN
Fatigue load limit Pu 0.325 kN
Max radial load 9.3 kN
Max static load 13.4 kN
