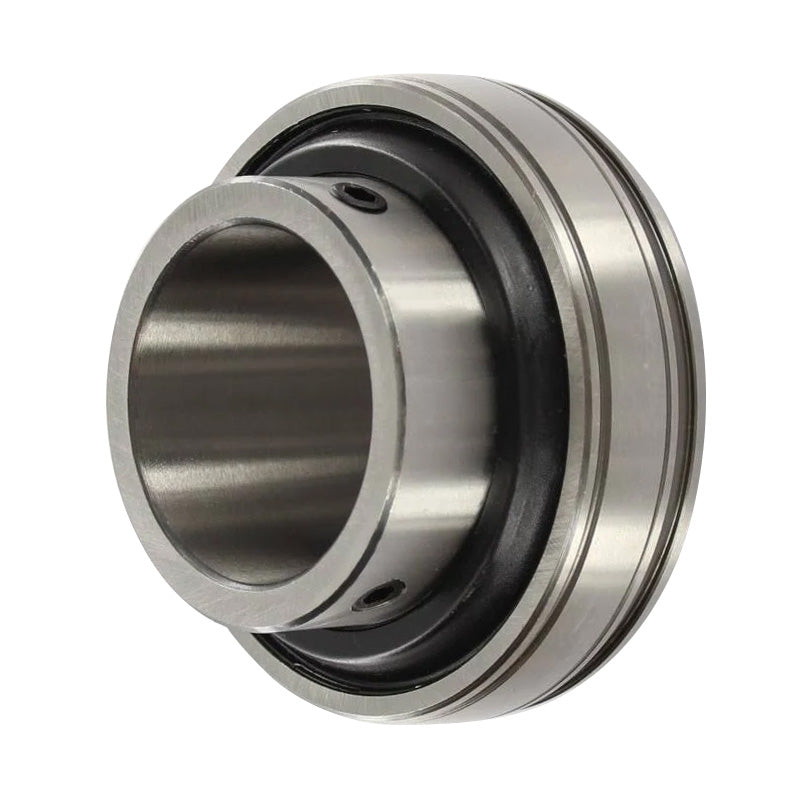

• RHP 3095-3-15/16G Spherical Outer Full Width Bearing Insert 3-15/16 inch Bore 200mm Outside Diameter
1 1

SKU: 3095-3.15/16G-RHP

RHP 3095-3-15/16G Spherical Outer Full Width Bearing Insert 3-15/16 inch Bore 200mm Outside Diameter

RHP 3095-3-15/16G Spherical Outer Full Width Bearing Insert 3-15/16 inch Bore 200mm Outside Diameter
$712.82 ex VAT
$712.82 ex VAT
Sale Sold out

In stock

Price Break
10+ $477.47
20+ $450.64
30+ $445.28
40+ $439.91
50+ $434.55
75+ $429.18
100+ $402.36
200+ $396.99
250+ $391.63
500+ $386.26
1000+ $375.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
100.01mm = 3.937 (3-15/16) inch
Outside Diameter:
200mm
Style:
3095
Technical
Bore 3-15/16 inch
D 7.874 inch
C 1.772 inch
B 4.625 inch
s 1.94 inch
d1 5.135 inch
M 0.75 inch
r 0.098 inch
Dynamic load Cr 157000 N
Static load Cor 122000 N
Rec max speed 1600 rpm
Weight 9.53 kg
