Major Brand 8003013 Heavy Duty Ball Transfer Unit - 30mm
Major Brand 8003013 Heavy Duty Ball Transfer Unit - 30mm
Major Brand 8003013 Heavy Duty Ball Transfer Unit - 30mm
Major Brand 8003013 Heavy Duty Ball Transfer Unit - 30mm
Major Brand 8003013 Heavy Duty Ball Transfer Unit - 30mm
Major Brand 8003013 Heavy Duty Ball Transfer Unit - 30mm

SKU: 30MM-BTU

Major Brand 8003013 Heavy Duty Ball Transfer Unit - 30mm

$31.68 ex VAT
$31.68
ex VAT
In stock

Quantity Price Breaks

10 $28.20
19 $26.61
29 $26.29
39 $25.98
49 $25.66
74 $25.34
99 $23.76
199 $23.44
249 $23.13
499 $22.81
999 $22.18
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand 8003013 Heavy Duty Ball Transfer Unit - 30mm
Major Brand 8003013 Heavy Duty Ball Transfer Unit - 30mm
Major Brand 8003013 Heavy Duty Ball Transfer Unit - 30mm
SKU: 30MM-BTU

Major Brand 8003013 Heavy Duty Ball Transfer Unit - 30mm

$31.68 ex VAT
$31.68
ex VAT

Description

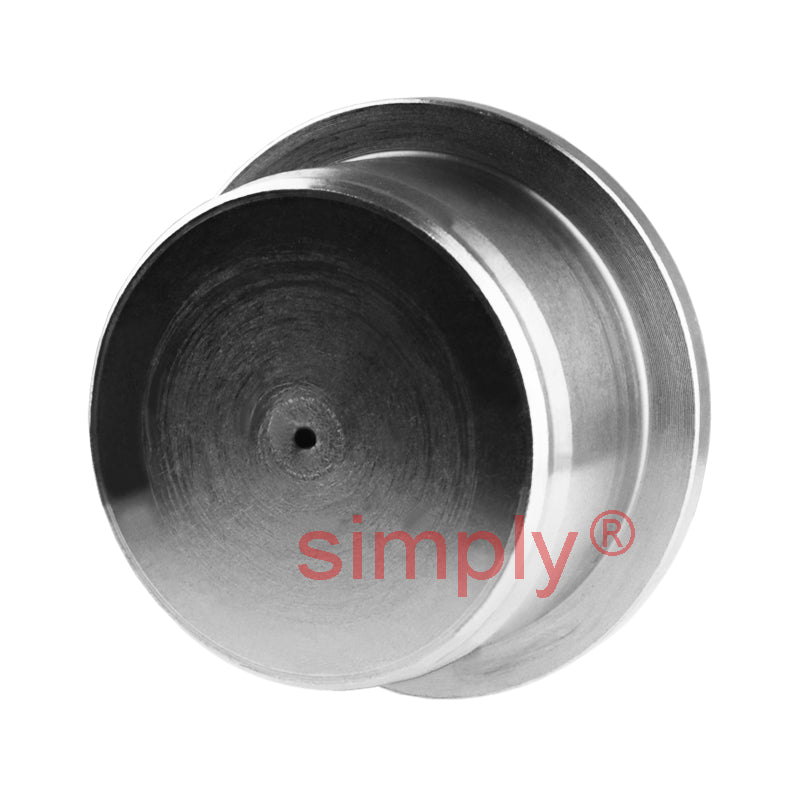

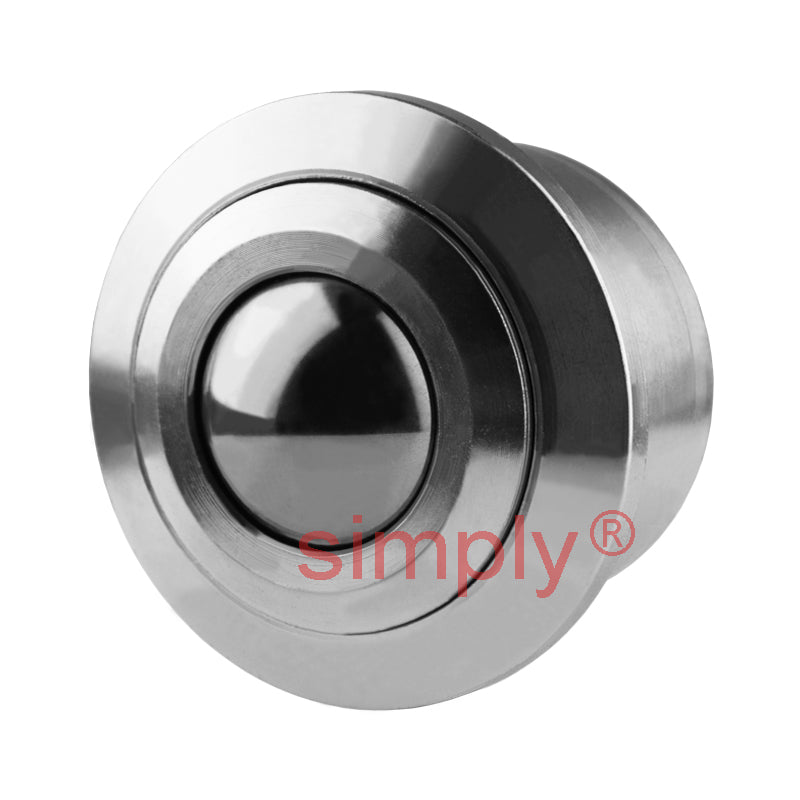

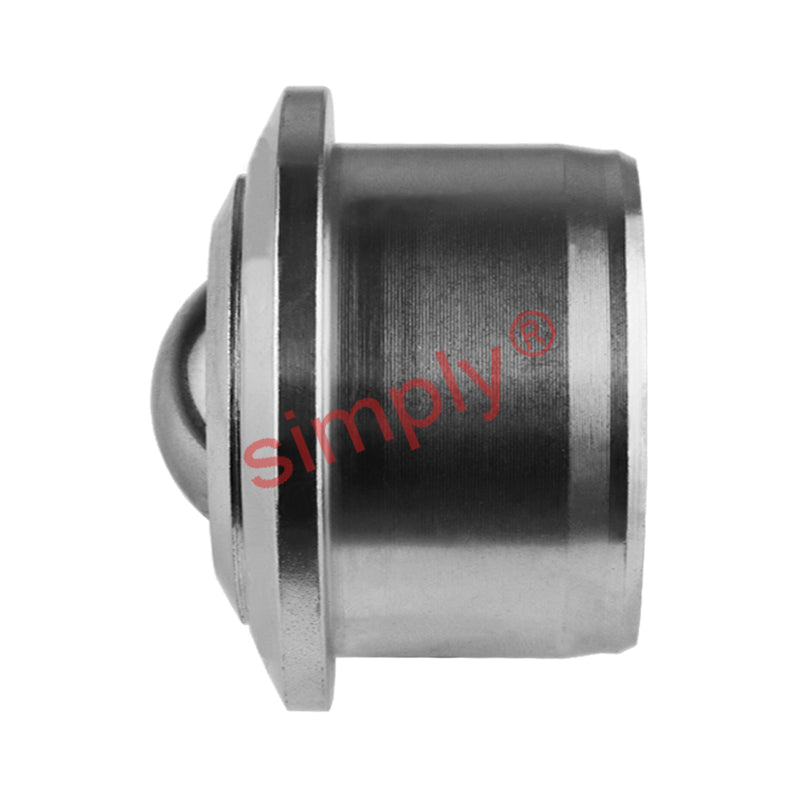

Heavy Duty 800 Series Ball Transfer Units: The body and outer ring are manufactured from Zinc Plated Carbon Steel. On the base of the unit there is a dirt hole which aims to reduce potential contaminents which improves efficiency and allows smoother running. These ball transfer units have a maximum dynamic load capactiy of upto 350kg (ball up) and 175kg (ball down). The maximum operating temperature is 70 deg C (continuous) or 100 deg C (intermittent).

Technical

Ball Diameter = 30mm
Dirt Hole Diameter = 2mm
Amount of Exposed Ball = 5.5mm
D = 54.5mm
D1 = 45mm
W = 36.8mm
W1 = 31.3mm
W2 = 13.8mm
F = 3.4mm
Weight = 0.362 kg
