SKU: 30x40x10_WPV_NAK

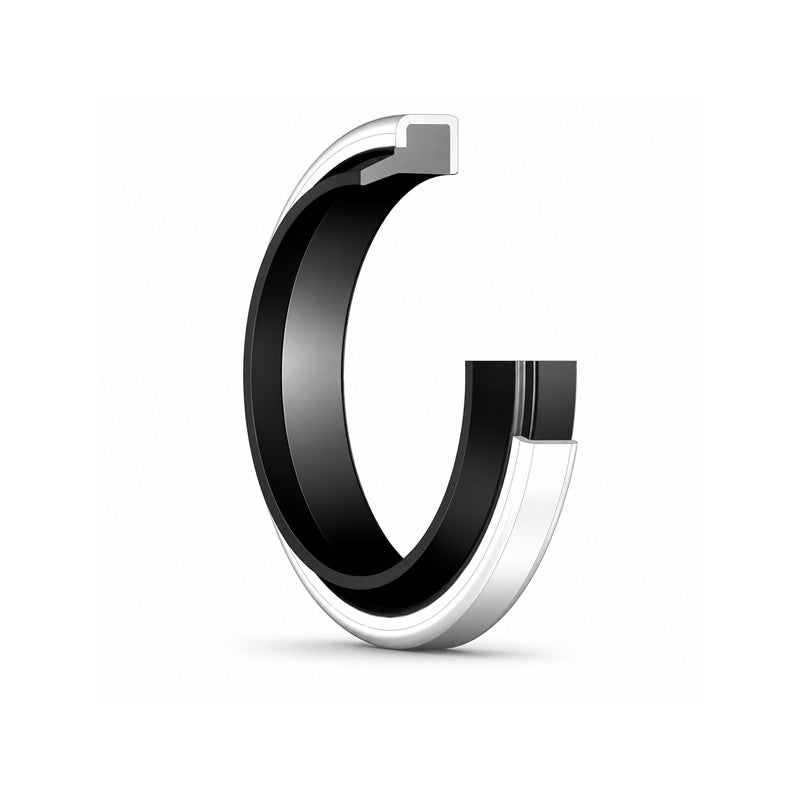

NAK 30x40x10mm WPV Nitrile Wiper Seal - Allow 7-10 Days
NAK 30x40x10mm WPV Nitrile Wiper Seal - Allow 7-10 Days
Out of stock
Share this product
Description
Description
NAK WPV Wiper Seals: WPV wiper seals are heavy-duty dust-exclusion seals designed to protect hydraulic and pneumatic systems from external contamination. This seal is particularly suitable for harsh environments and demanding operating conditions. The WPV wiper seal helps prolong the life of internal seals, reduce wear, and maintain system performance even under extensive use.
Benefits: Reliable, superior dust exclusion, excellent groove retention
- Brand / Quality:
- NAK - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 40mm
- Length:
- 10mm
- Material:
- Nitrile
- Style:
- WPV
- Colour:
- Black
Technical
Technical
| d | 30mm |
|---|---|
| D | 40mm |
| L | 7mm |
| t | 7mm |
| h | 10mm |
| c | 2.5mm |
| Inside Diameter Tolerance | f8 |
| Outside Diameter Tolerance | H8 |
| Length Tolerance | 0.2mm |
| Running Speed v | 1 m/s |
| Temperature | -35 Deg C to +100 Deg C |
| Colour | Black |
