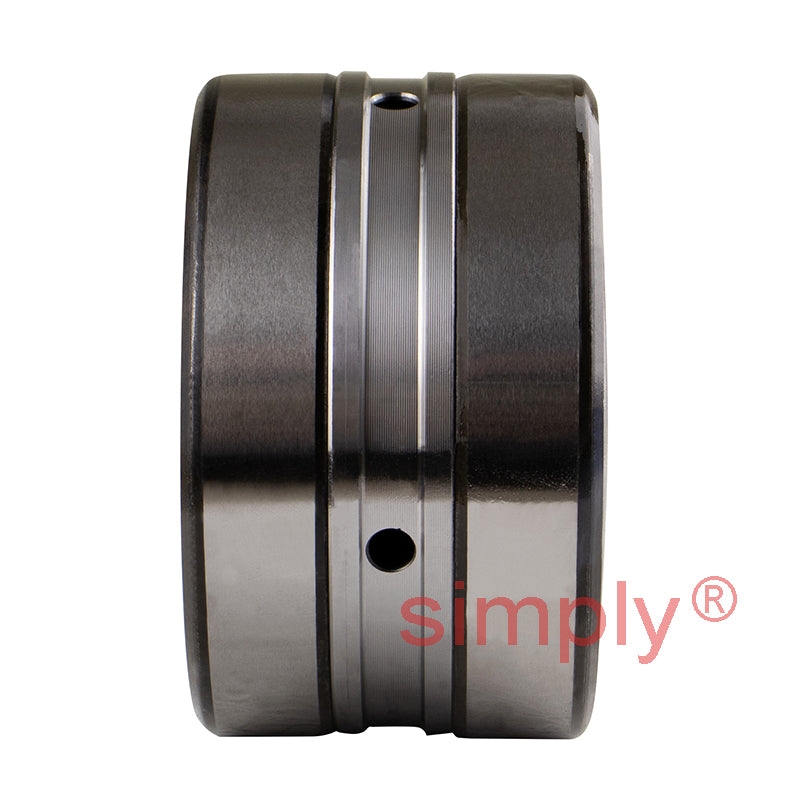

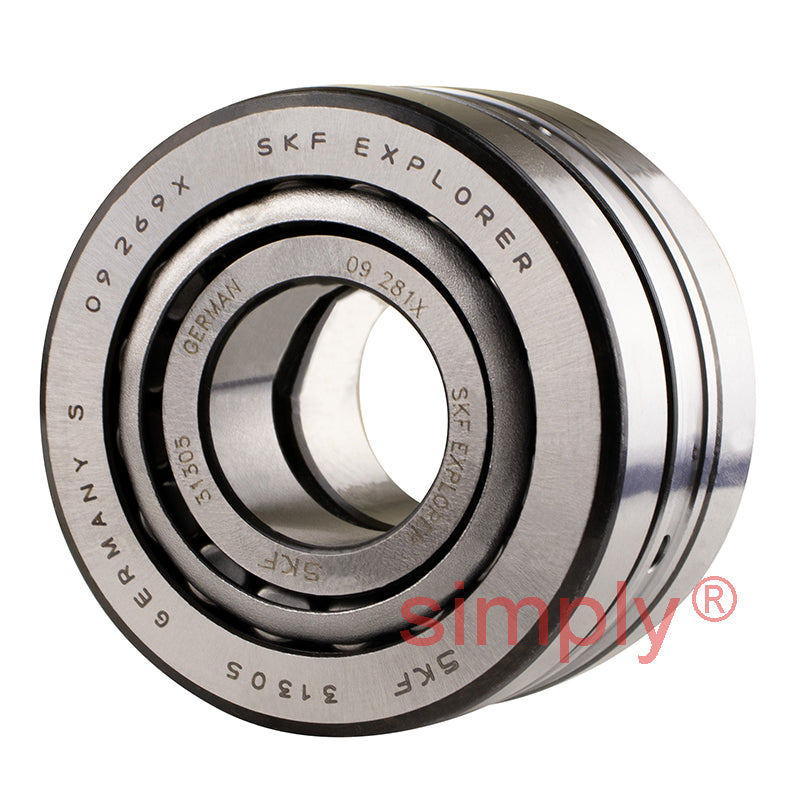

• SKF 31305J2/DF Single Row Taper Roller Bearings Paired Face to Face 25x62x36.5mm
  • SKF 31305J2/DF Single Row Taper Roller Bearings Paired Face to Face 25x62x36.5mm
  • SKF 31305J2/DF Single Row Taper Roller Bearings Paired Face to Face 25x62x36.5mm
1 3

SKU: 31305J2/DF-SKF

SKF 31305J2/DF Single Row Taper Roller Bearings Paired Face to Face 25x62x36.5mm

SKF 31305J2/DF Single Row Taper Roller Bearings Paired Face to Face 25x62x36.5mm
$381.52 ex VAT
$381.52 ex VAT
Sale Sold out

In stock

Price Break
10+ $255.56
19+ $241.20
29+ $238.33
39+ $235.46
49+ $232.59
74+ $229.71
99+ $215.36
199+ $212.49
249+ $209.61
499+ $206.74
999+ $201.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Paired Metric Taper Roller Bearing Sets: These bearings have tapered inner and outer raceways between which tapered roller are arranged and are mounted in matched pairs either facing each other or back to back on a common dual outer raceway. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads typical of those experienced in wheel hubs or heavy rolling machinery.
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
SKF - High Quality
Inside Diameter:
25mm
Outside Diameter:
62mm
Width:
36.5mm
Seals / Shields:
None
Technical
d 25mm
D 62mm
T 36.5mm
Dynamic load 64.4 kN
Static load 80 kN
Fatigue load limit Pu 8.65 kN
Reference speed 6000 rpm
Limiting speed 11000 rpm
Weight 0.55 kg
2B 34mm
r3r4 1.5mm
r5 0.6mm
da max 34mm
da min 47mm
Da max 55mm
Ca min 3mm
ra max 1.5mm
rc max 0.6mm
Calculation Factor e 0.83
Calculation Factor Y1 0.81
Calculation Factor Y2 1.2
Calculation Factor Y0 0.8
