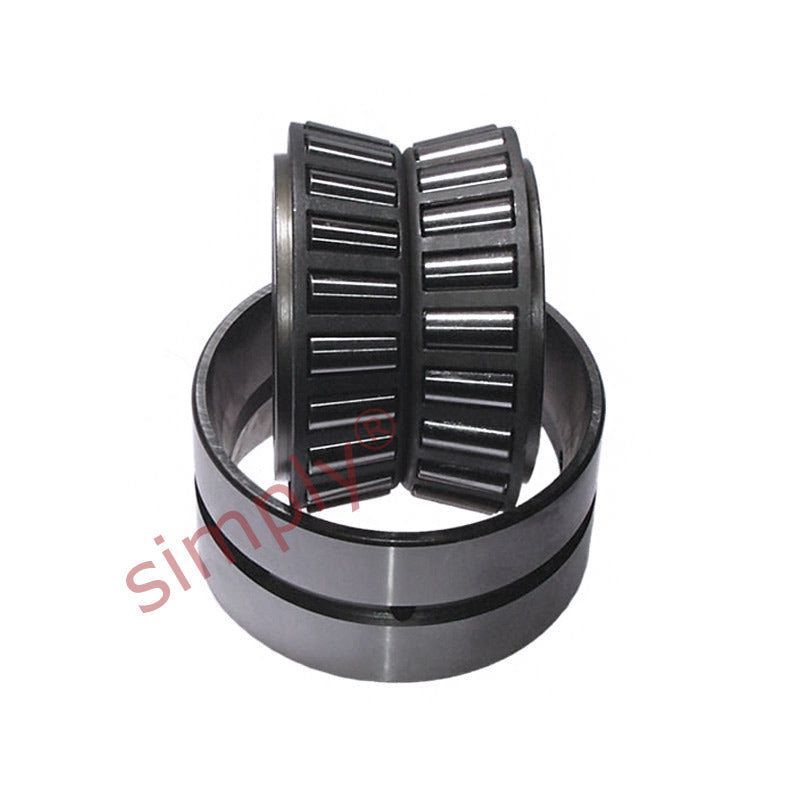

• SKF 31309J2/QCL7CDF Single Row Taper Roller Bearings Paired Face to Face 45x100x54.5mm
1 1

SKU: 31309J2/QCL7CDF-SKF

SKF 31309J2/QCL7CDF Single Row Taper Roller Bearings Paired Face to Face 45x100x54.5mm

SKF 31309J2/QCL7CDF Single Row Taper Roller Bearings Paired Face to Face 45x100x54.5mm
$506.96 ex VAT
$506.96 ex VAT
Sale Sold out

In stock

Price Break
10+ $339.58
19+ $320.50
29+ $316.69
39+ $312.87
49+ $309.06
74+ $305.24
99+ $286.16
199+ $282.35
249+ $278.53
499+ $274.72
999+ $267.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Paired Metric Taper Roller Bearing Sets: These bearings have tapered inner and outer raceways between which tapered roller are arranged and are mounted in matched pairs either facing each other or back to back on a common dual outer raceway. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads typical of those experienced in wheel hubs or heavy rolling machinery.
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
Brand / Quality:
SKF - High Quality
Inside Diameter:
45mm
Outside Diameter:
100mm
Width:
54.5mm
Seals / Shields:
None
Technical
d 45mm
D 100mm
T 54.5mm
Dynamic load 180 kN
Static load 204 kN
Fatigue load limit Pu 24.5 kN
Reference speed 4000 rpm
Limiting speed 6700 rpm
Weight 2 kg
2B 50mm
r3r4 1.5mm
r5 0.6mm
da max 57mm
da min 79mm
Da max 91mm
Ca min 4mm
ra max 1.5mm
rc max 0.6mm
Calculation Factor e 0.83
Calculation Factor Y1 0.81
Calculation Factor Y2 1.2
Calculation Factor Y0 0.8
