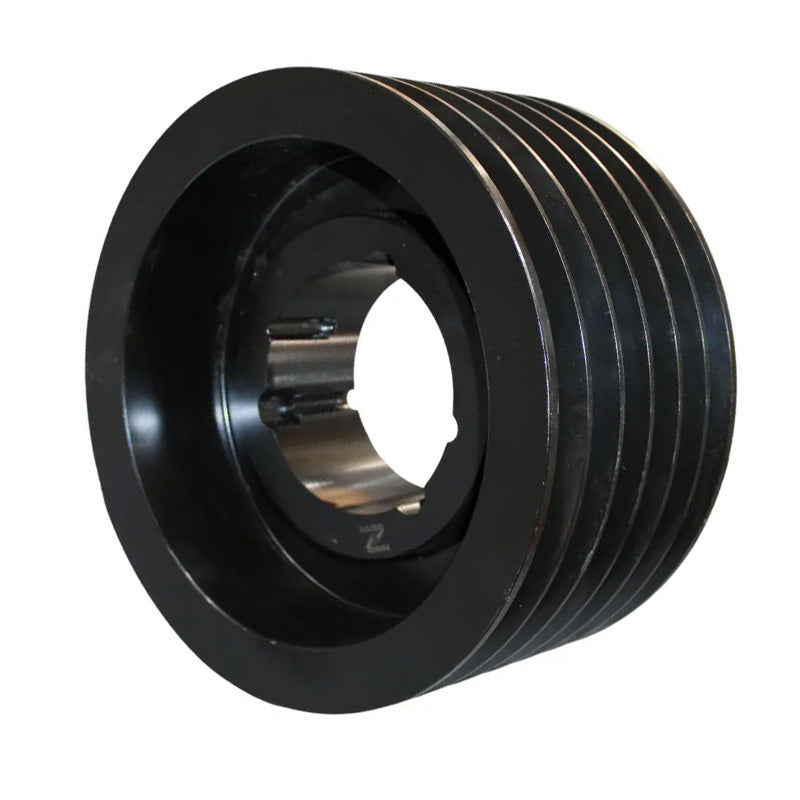

• 315X6SPA 315mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
  • 315X6SPA 315mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
1 2

SKU: 315SPA6-MB

315X6SPA 315mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)

315X6SPA 315mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
$140.59 ex VAT
$140.59 ex VAT
Sale Sold out

In stock

Price Break
3+ $94.18
5+ $88.88
9+ $87.83
19+ $86.77
49+ $85.71
74+ $84.65
99+ $79.36
199+ $78.30
249+ $77.24
499+ $76.19
999+ $74.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
6
Outside Diameter:
320.5mm
Pitch Diameter:
315mm
Max Bore:
90mm

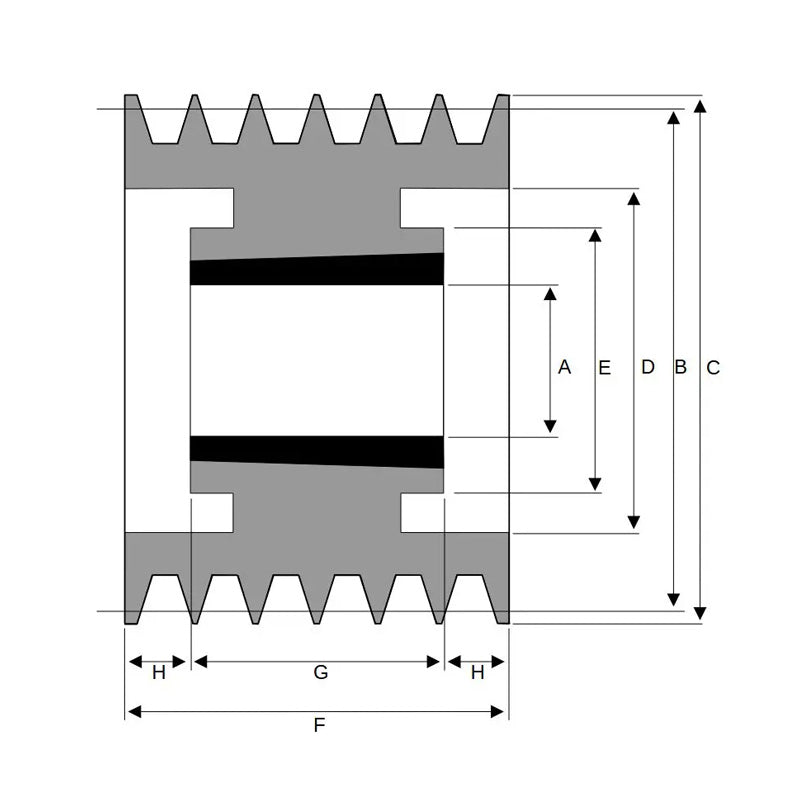

Technical
Number of Grooves 6
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3535+tapered+locking+bush">3535 Click Here</a>
Pitch Diameter B 315mm
Overall Outer Diameter C 320.5mm
Max Bore A 90mm
Outer Hub Diameter E mm
Overall Sheave Depth F 95mm
Bush Seat Length G 89mm
Inner Recess Length H 6mm
