SKU: 315SPB6-MB

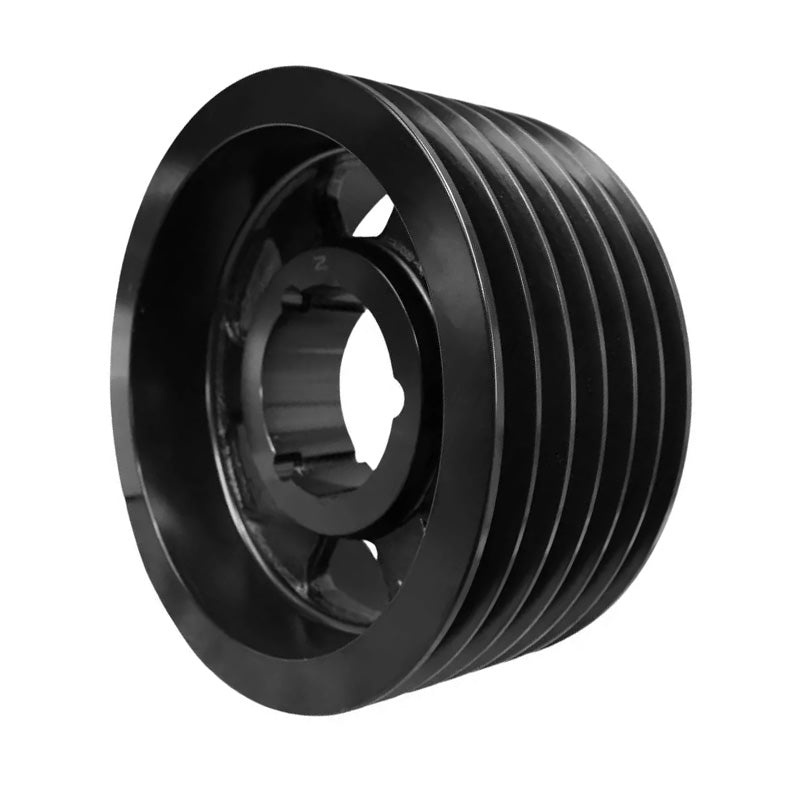

315X6SPB 315mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)

315X6SPB 315mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
$195.44 ex VAT
$195.44 ex VAT
Sale Sold out

In stock

Price Break
3+ $130.91
5+ $123.56
9+ $122.09
19+ $120.61
49+ $119.14
74+ $117.67
99+ $110.32
199+ $108.85
249+ $107.38
499+ $105.91
999+ $102.96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
6
Outside Diameter:
322.6mm
Pitch Diameter:
315mm
Max Bore:
90mm

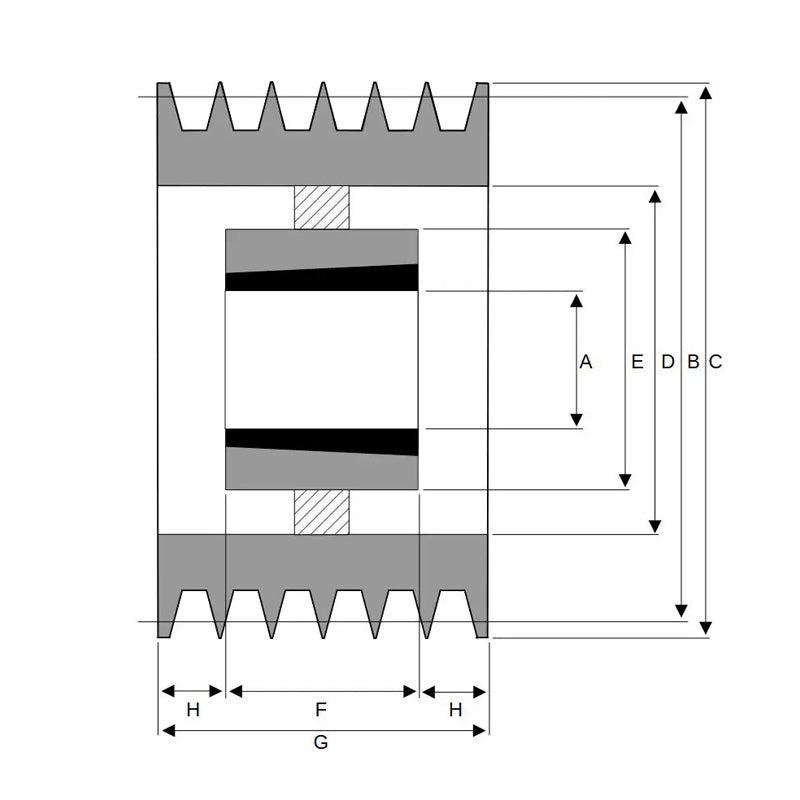

Technical
Number of Grooves 6
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3535+tapered+locking+bush">3535 Click Here</a>
Pitch Diameter B 315mm
Overall Outer Diameter C 322.6mm
Max Bore A 90mm
Outer Hub Diameter E 175mm
Overall Sheave Depth F 120mm
Bush Seat Length G 89mm
Inner Recess Diameter D 272mm
Inner Recess Length H 15.5mm
