SKU: 315SPC3-MB

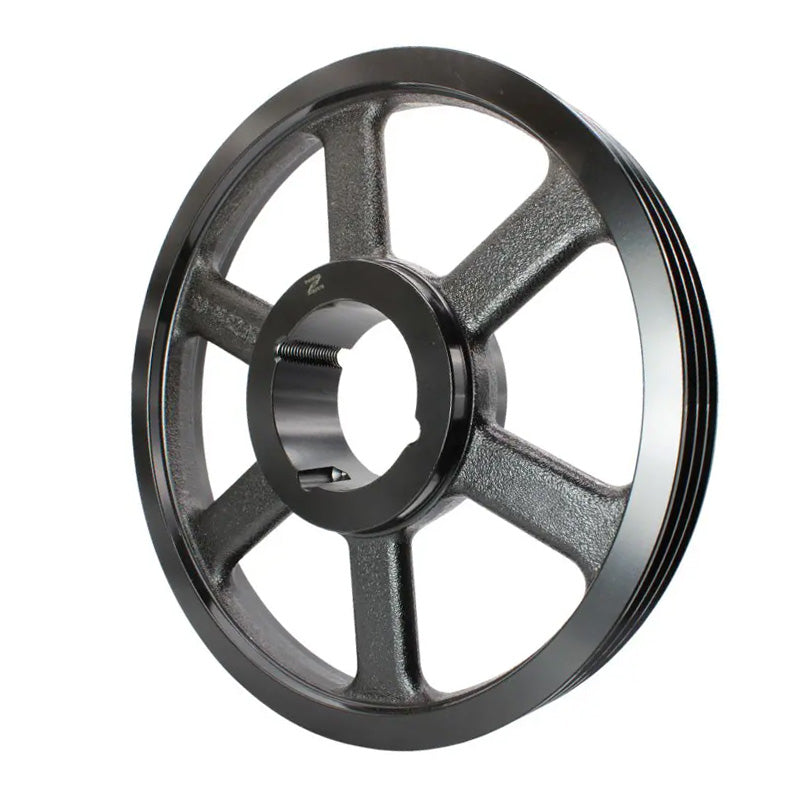

315X3SPC 315mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)

Name: 315X3SPC 315mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
Brand: Major Brand
SKU: 315SPC3-MB
Price: 198.65 USD
Availability: InStock

$198.65 ex VAT

Sale Sold out

In stock

Price Break

3+ $133.07

5+ $125.59

9+ $124.09

19+ $122.60

49+ $121.10

74+ $119.61

99+ $112.13

199+ $110.64

249+ $109.14

499+ $107.65

999+ $104.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Major Brand - High Quality
Grooves:: 3
Outside Diameter:: 325.2mm
Pitch Diameter:: 315mm
Max Bore:: 90mm

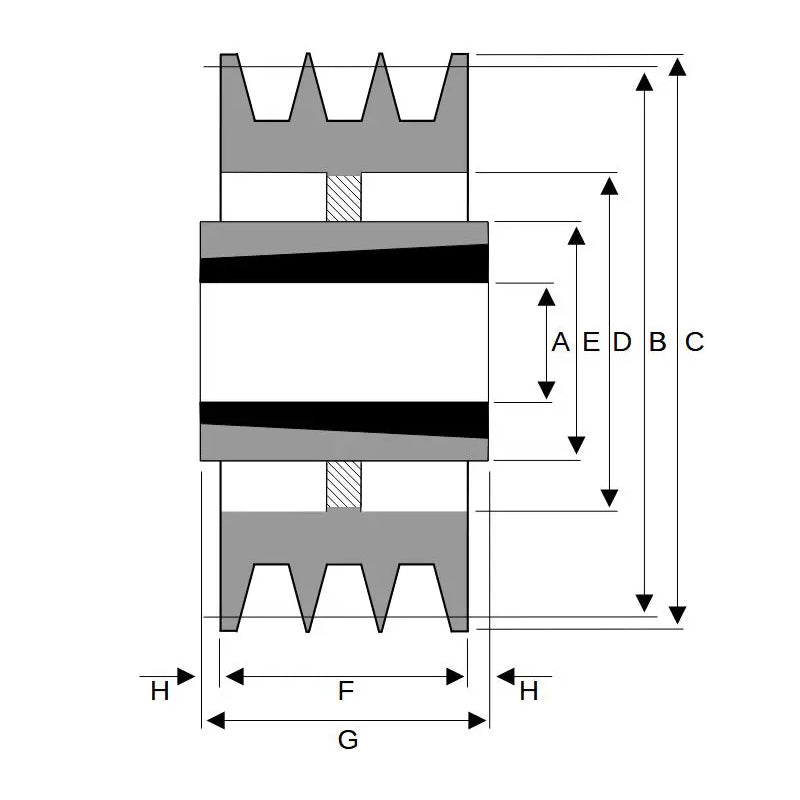

Technical

Number of Grooves	3
Bush	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3525+tapered+locking+bush">3525 Click Here</a>
Pitch Diameter B	315mm
Overall Outer Diameter C	325.2mm
Max Bore A	90mm
Outer Hub Diameter E	175mm
Overall Sheave Depth F	85mm
Bush Seat Length G	65mm
Inner Recess Diameter D	258mm
Inner Recess Length H	10mm
