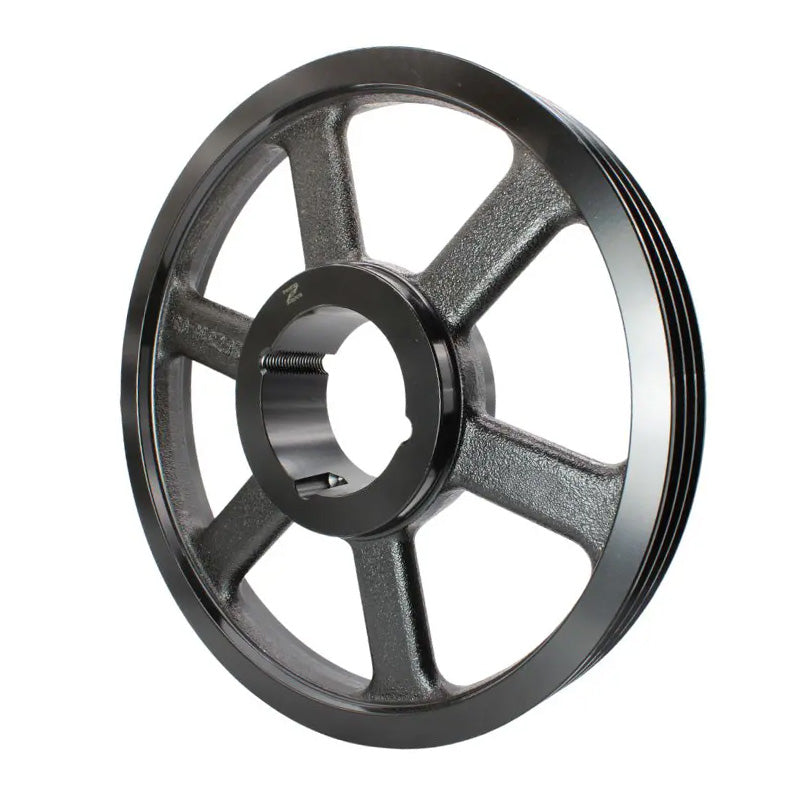

• 315X3SPZ 315mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
1 1

SKU: 315SPZ3-MB

315X3SPZ 315mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)

315X3SPZ 315mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
$69.50 ex VAT
$69.50 ex VAT
Sale Sold out

In stock

Price Break
3+ $46.55
5+ $43.94
9+ $43.42
19+ $42.89
49+ $42.37
74+ $41.85
99+ $39.23
199+ $38.71
249+ $38.18
499+ $37.66
999+ $36.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
3
Outside Diameter:
319.6mm
Pitch Diameter:
315mm
Max Bore:
60mm

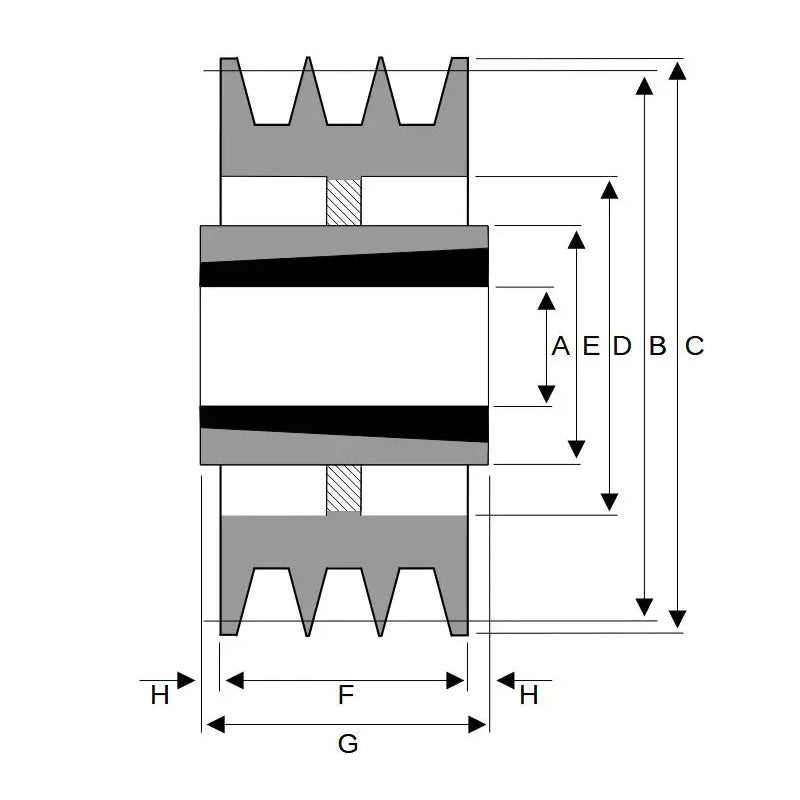

Technical
Number of Grooves 3
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2517+tapered+locking+bush">2517 Click Here</a>
Pitch Diameter B 315mm
Overall Outer Diameter C 319.6mm
Max Bore A 60mm
Outer Hub Diameter E 124mm
Overall Sheave Depth F 40mm
Bush Seat Length G 45mm
Inner Recess Diameter D 286mm
Inner Recess Length H 2.5mm
