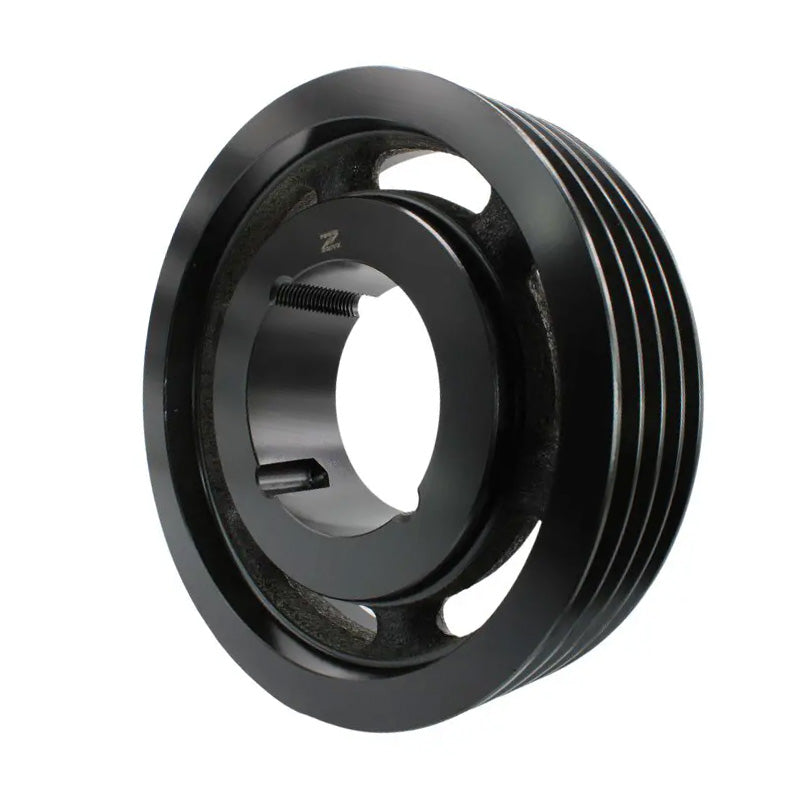

• 315X4SPZ 315mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
1 1

SKU: 315SPZ4-MB

315X4SPZ 315mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

315X4SPZ 315mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
$82.09 ex VAT
$82.09 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.98
5+ $51.89
9+ $51.27
19+ $50.66
49+ $50.04
74+ $49.42
99+ $46.33
199+ $45.71
249+ $45.10
499+ $44.48
999+ $43.24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
4
Outside Diameter:
319.6mm
Pitch Diameter:
315mm
Max Bore:
60mm

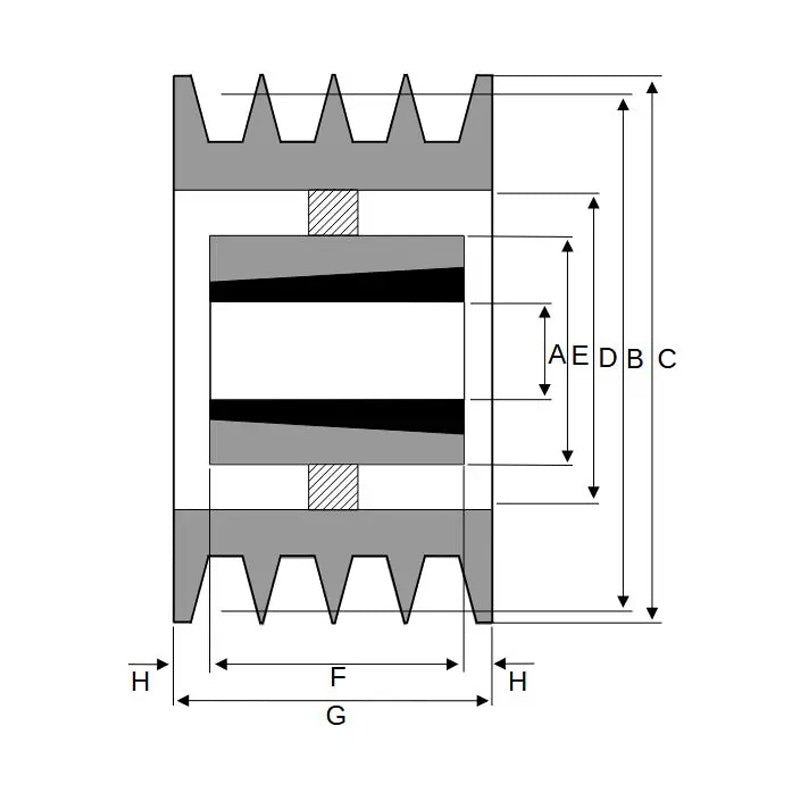

Technical
Number of Grooves 4
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2517+tapered+locking+bush">2517 Click Here</a>
Pitch Diameter B 315mm
Overall Outer Diameter C 319.6mm
Max Bore A 60mm
Outer Hub Diameter E 124mm
Overall Sheave Depth F 52mm
Bush Seat Length G 45mm
Inner Recess Diameter D 286mm
Inner Recess Length H 3.5mm
